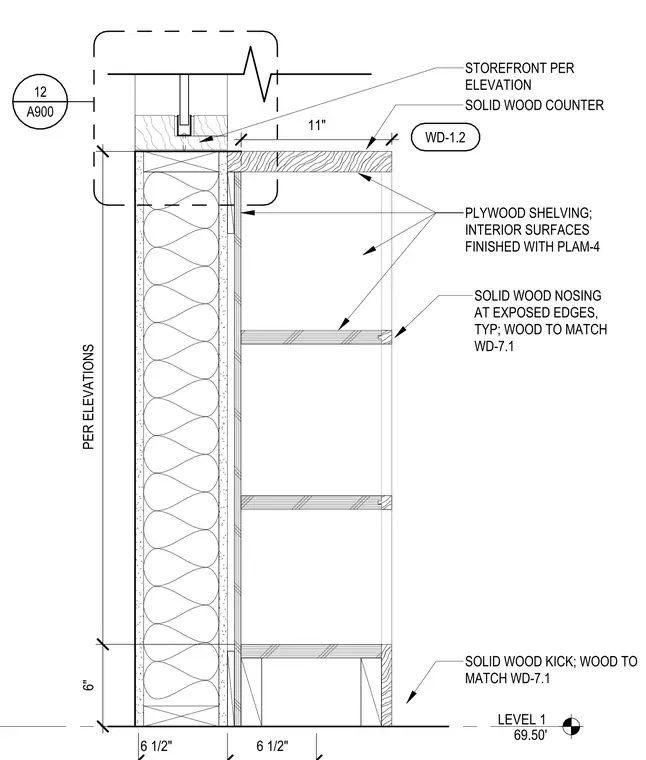

This assembly features plywood shelving with interior surfaces finished in plastic laminate, supported by a framed wall. Each shelf edge is finished with solid wood nosing matching finish WD-7.1. The top surface consists of a solid wood counter, positioned eleven inches deep, sitting adjacent to a storefront system. A solid wood kick plate matching finish WD-7.1 is provided at the base of the shelving unit. The supporting wall is six and one-half inches thick and includes batt insulation.
