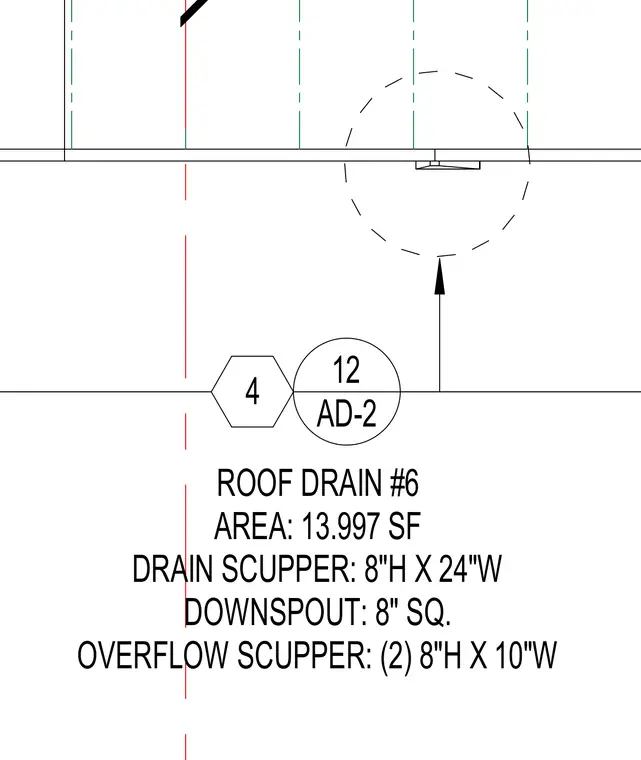

Roof drain number six serves an area of 13,997 square feet. The assembly includes a primary drain scupper measuring 8 inches high by 24 inches wide connected to an 8-inch square downspout. Two overflow scuppers measuring 8 inches high by 10 inches wide provide emergency drainage.
12 AD-2 ROOF DRAIN #6 AREA: 13.997 SF DRAIN SCUPPER: 8"H X 24"W DOWNSPOUT: 8" SQ. OVERFLOW SCUPPER: (2) 8"H X 10"W 4
