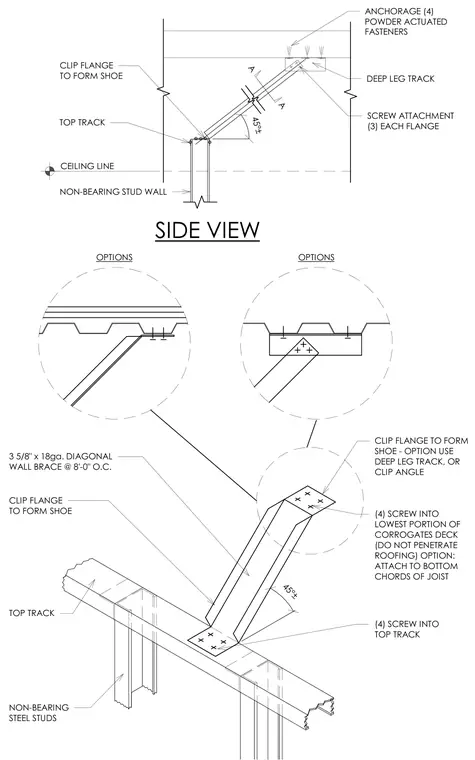

A 3-5/8 inch by 18-gauge diagonal wall brace extends from the top track of a non-bearing steel stud wall up to the overhead structure at approximately 45 degrees on center at 8 feet. The brace connects to the wall top track using a formed clip shoe secured with three screws on each flange. At the overhead structure, the brace provides options for attachment: securing four screws into the lowest portion of the corrugated metal deck without penetrating the roofing, fastening four screws into the bottom chords of a steel joist, or anchoring with four powder-actuated fasteners into a deep leg track. The assembly stabilizes top-of-wall conditions against lateral forces.
45°± 45°± SCREW ATTACHMENT (3) EACH FLANGE CLIP FLANGE TO FORM SHOE A TOP TRACK CEILING LINE A SIDE VIEW NON-BEARING STUD WALL ANCHORAGE (4) POWDER ACTUATED FASTENERS CLIP FLANGE TO FORM SHOE - OPTION USE DEEP LEG TRACK, OR CLIP ANGLE (4) SCREW INTO LOWEST PORTION OF CORROGATES DECK (DO NOT PENETRATE ROOFING) OPTION: ATTACH TO BOTTOM CHORDS OF JOIST (4) SCREW INTO TOP TRACK NON-BEARING STEEL STUDS CLIP FLANGE TO FORM SHOE 3 5/8" x 18ga. DIAGONAL WALL BRACE @ 8'-0" O.C. TOP TRACK OPTIONS OPTIONS DEEP LEG TRACK
