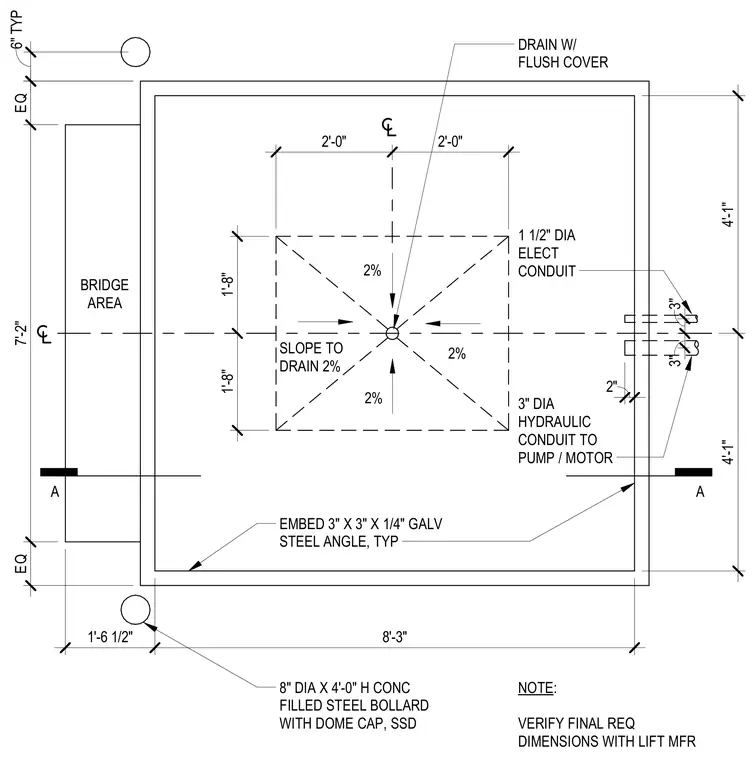

The concrete scissor lift pit layout includes a central floor drain with a flush cover and a two percent slope. A three-inch diameter hydraulic conduit connects to the pump and motor, accompanied by a one-and-a-half-inch diameter electrical conduit. The pit perimeter is lined with embedded three-by-three-by-one-quarter-inch galvanized steel angles. Eight-inch diameter by four-foot high concrete-filled steel bollards with dome caps are positioned outside the pit. Final dimensions must be verified with the lift manufacturer.
3" DIA HYDRAULIC CONDUIT TO PUMP / MOTOR NOTE: VERIFY FINAL REQ DIMENSIONS WITH LIFT MFR BRIDGE AREA 1'-6 1/2" 8'-3" 4'-1" 4'-1" SLOPE TO DRAIN 2% 2% EMBED 3" X 3" X 1/4" GALV STEEL ANGLE, TYP 2'-0" 2'-0" 1'-8" 1'-8" 2% 2% 2" 3" 3" 1 1/2" DIA ELECT CONDUIT DRAIN W/ FLUSH COVER 8" DIA X 4'-0" H CONC FILLED STEEL BOLLARD WITH DOME CAP, SSD EQ 7'-2" EQ A A 6" TYP
