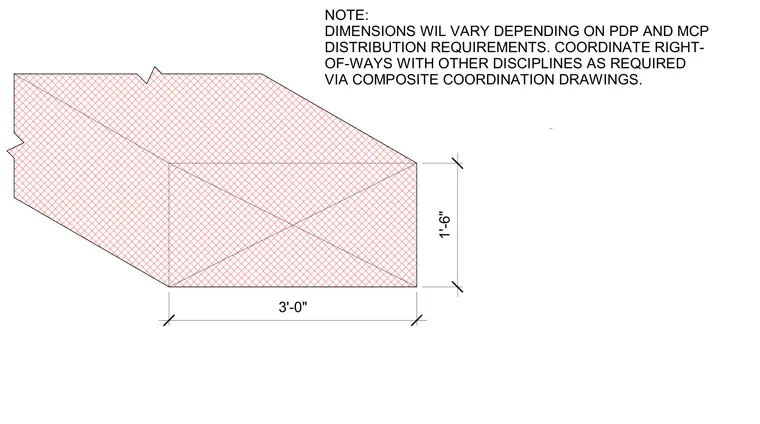

Wireway envelope routing between the main distribution panel and motor control center. Dimensions vary depending on distribution requirements and spatial coordination with other trades. The cross-section indicates a width of 3'-0" and a height of 1'-6" for the routing envelope. Right-of-ways must be coordinated via composite coordination drawings.
NOTE: DIMENSIONS WIL VARY DEPENDING ON PDP AND MCP DISTRIBUTION REQUIREMENTS. COORDINATE RIGHT- OF-WAYS WITH OTHER DISCIPLINES AS REQUIRED VIA COMPOSITE COORDINATION DRAWINGS. 3'-0" 1'-6"
