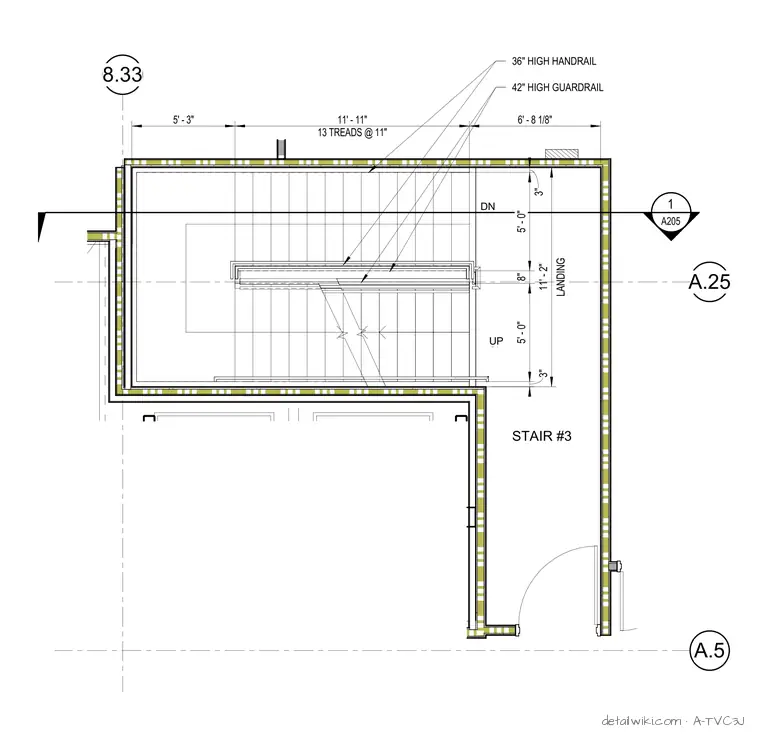

Text on the drawing
UP UP DN A.5 8.33 LANDING 11' - 2" 5' - 3" 13 TREADS @ 11" 11' - 11" 6' - 8 1/8" 42" HIGH GUARDRAIL 36" HIGH HANDRAIL STAIR #3 1 A205 A.25 3" 5' - 0" 8" 5' - 0" 3"
