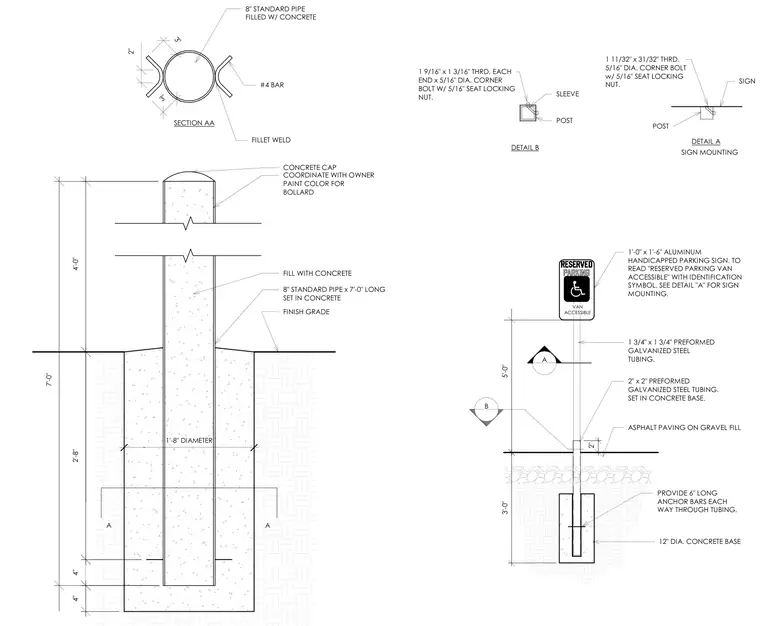

An accessible parking sign is mounted on preformed galvanized steel tubing set within a concrete base, anchored with transverse bars through the tubing extending into asphalt paving on gravel fill. Sign attachment details illustrate the post sleeve secured with threaded corner bolts and seat locking nuts supporting the aluminum sign panel. A separate security bollard detail consists of an eight-inch standard steel pipe set in a concrete foundation, filled with concrete and topped with a rounded concrete cap. Section views detail the bollard's reinforcement layout with welded steel bars.
5'-0" 3'-0" 2" VAN ACCESSIBLE A B POST SLEEVE 1 9/16" x 1 3/16" THRD. EACH END x 5/16" DIA. CORNER BOLT W/ 5/16" SEAT LOCKING NUT. 1 11/32" x 31/32" THRD. 5/16" DIA. CORNER BOLT w/ 5/16" SEAT LOCKING NUT. SIGN POST DETAIL B DETAIL A SIGN MOUNTING 12" DIA. CONCRETE BASE PROVIDE 6" LONG ANCHOR BARS EACH WAY THROUGH TUBING. ASPHALT PAVING ON GRAVEL FILL 2" x 2" PREFORMED GALVANIZED STEEL TUBING. SET IN CONCRETE BASE. 1 3/4" x 1 3/4" PREFORMED GALVANIZED STEEL TUBING. 1'-0" x 1'-6" ALUMINUM HANDICAPPED PARKING SIGN. TO READ "RESERVED PARKING VAN ACCESSIBLE" WITH IDENTIFICATION SYMBOL. SEE DETAIL "A" FOR SIGN MOUNTING. 4" 2'-8" 7'-0" 4'-0" 2" 3" 3" 4" FILL WITH CONCRETE CONCRETE CAP 8" STANDARD PIPE x 7'-0" LONG SET IN CONCRETE FINISH GRADE #4 BAR SECTION AA FILLET WELD A A 8" STANDARD PIPE FILLED W/ CONCRETE 1'-8" DIAMETER COORDINATE WITH OWNER PAINT COLOR FOR BOLLARD
