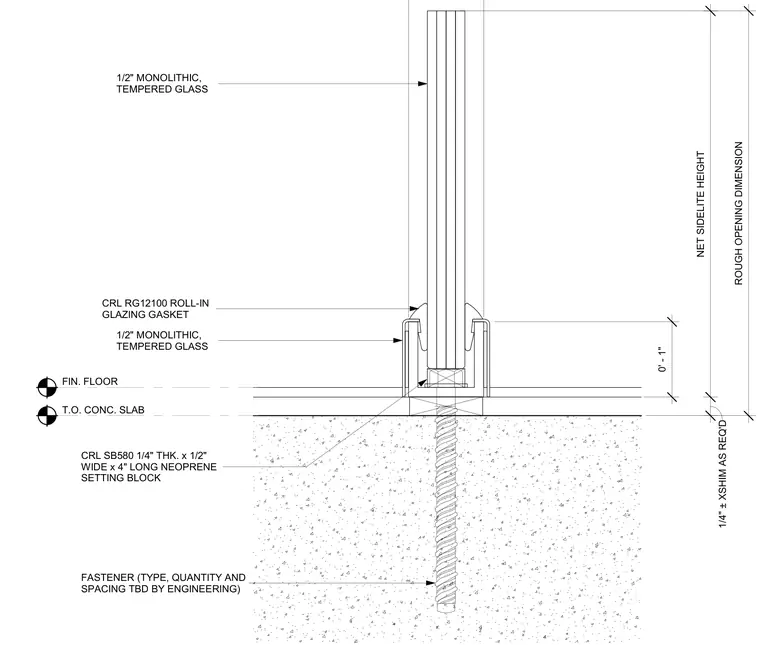

A sidelite sill assembly is anchored directly into a concrete slab. A 1/4-inch thick by 1/2-inch wide by 4-inch long neoprene setting block supports the 1/2-inch monolithic tempered glass pane above the finished floor level. Shims are provided as required beneath the frame for leveling, with fasteners and spacing determined by engineering. CRL RG12100 roll-in glazing gaskets secure the glass within the framing channel.
FASTENER (TYPE, QUANTITY AND SPACING TBD BY ENGINEERING) CRL SB580 1/4" THK. x 1/2" WIDE x 4" LONG NEOPRENE SETTING BLOCK FIN. FLOOR T.O. CONC. SLAB 0' - 1" 1/4" ± XSHIM AS REQ'D NET SIDELITE HEIGHT ROUGH OPENING DIMENSION 1/2" MONOLITHIC, TEMPERED GLASS 1/2" MONOLITHIC, TEMPERED GLASS CRL RG12100 ROLL-IN GLAZING GASKET
