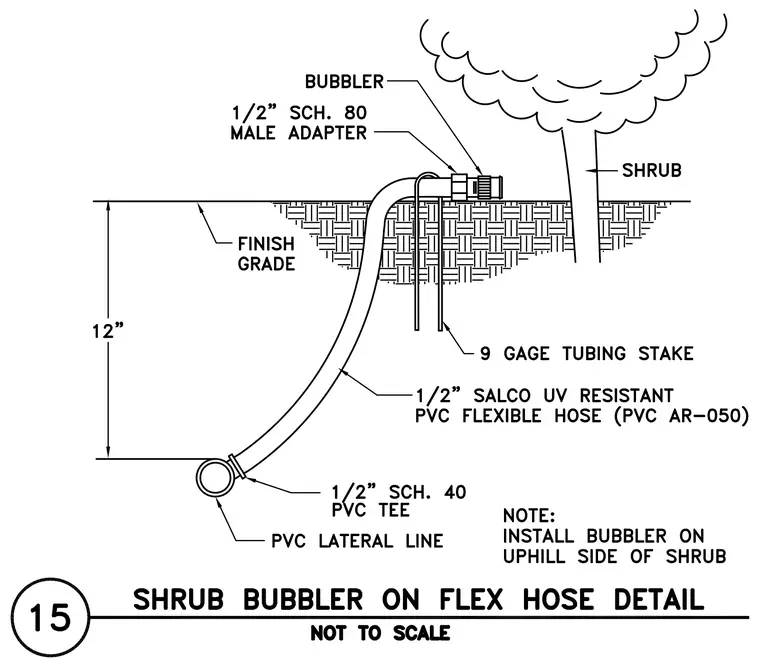

A bubbler is connected to a one-half-inch schedule 80 male adapter and supported by a nine-gauge tubing stake set into the ground near a shrub. The bubbler assembly is fed by a one-half-inch Salco ultraviolet resistant polyvinyl chloride flexible hose with part number PVC AR-zero-fifty, buried at a depth of twelve inches below the finish grade. The flexible hose connects to a one-half-inch schedule 40 polyvinyl chloride tee on the polyvinyl chloride lateral line. The installation note requires the bubbler to be placed on the uphill side of the shrub.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
