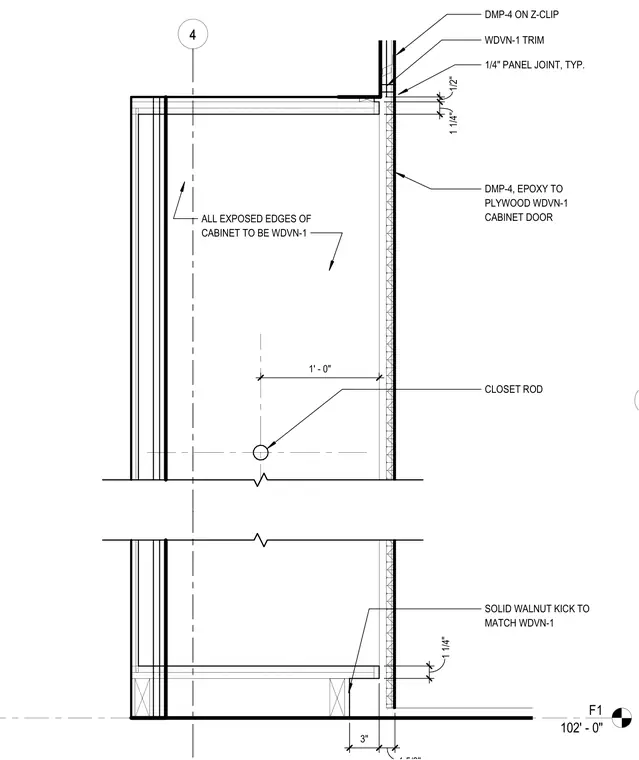

This architectural millwork detail shows a custom reception back cabinet assembly with wood veneer paneling and doors. The plywood doors and panels feature DMP-4 applied with epoxy and secured with z-clips, maintaining a typical one-quarter-inch panel joint. All exposed edges of the cabinet are finished with WDVN-1 wood veneer. A closet rod is positioned inside the cabinet, and a solid walnut kickplate matching the WDVN-1 finish is installed at the base.
4 F1 102' - 0" 1 1 / 4 " 1 ' - 0 " 3 " ALL EXPOSED EDGES OF CABINET TO BE WDVN-1 1/4" PANEL JOINT, TYP. DMP-4 ON Z-CLIP DMP-4, EPOXY TO PLYWOOD WDVN-1 CABINET DOOR WDVN-1 TRIM 1 / 2 " 1 1 / 4 " SOLID WALNUT KICK TO MATCH WDVN-1 CLOSET ROD
