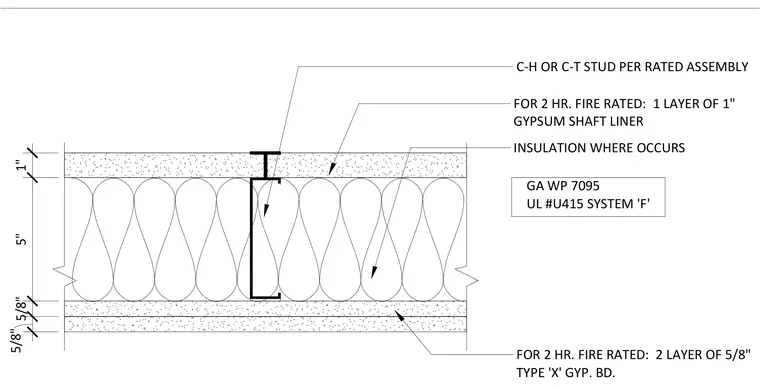

This two-hour fire-rated partition wall assembly consists of C-H or C-T studs per the rated assembly with one layer of 1-inch gypsum shaft liner and insulation where required. The faces are finished with two layers of 5/8-inch Type X gypsum board on one side. The assembly conforms to Gypsum Association GA WP 7095 and Underwriters Laboratories UL #U415 System F.
FOR 2 HR. FIRE RATED: 1 LAYER OF 1" GYPSUM SHAFT LINER INSULATION WHERE OCCURS FOR 2 HR. FIRE RATED: 2 LAYER OF 5/8" TYPE 'X' GYP. BD. C-H OR C-T STUD PER RATED ASSEMBLY 5/8" 5/8" 5" 1" GA WP 7095 UL #U415 SYSTEM 'F'
