Architectural · A-TTBCP

Ceiling Edge Condition at Sloping Stud Wall

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Ceilings Floors / Slabs Bracing Connections / Plates

Connections

Bracing Connection

About this detail

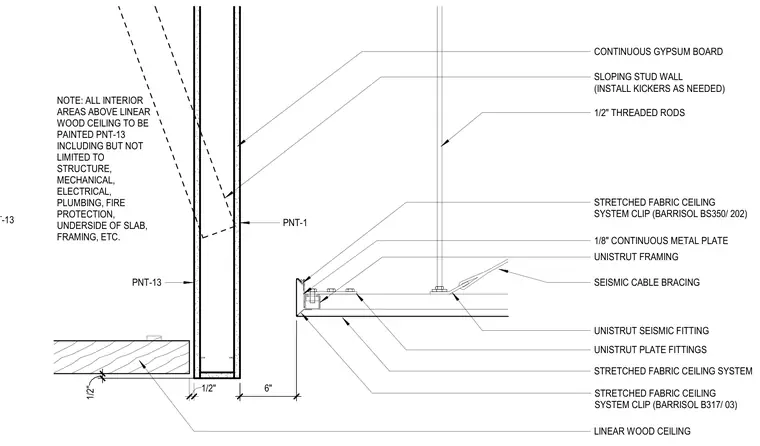

The ceiling edge condition adjacent to a sloping stud wall is framed with continuous gypsum board and finished with paint type PNT-1 and PNT-13. A linear wood ceiling terminates near the wall with a half-inch clearance gap, while a stretched fabric ceiling system is supported below by Unistrut framing and continuous metal plates. The ceiling assembly is suspended using half-inch threaded rods and reinforced with seismic cable bracing connected via Unistrut seismic fittings and plate fittings. All interior areas located above the linear wood ceiling are painted with PNT-13, encompassing the structure, mechanical, electrical, plumbing, fire protection, and underside of the slab.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
