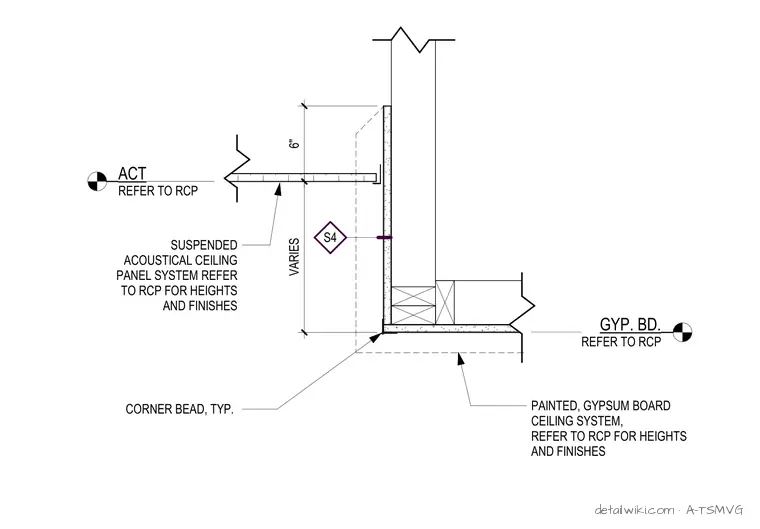

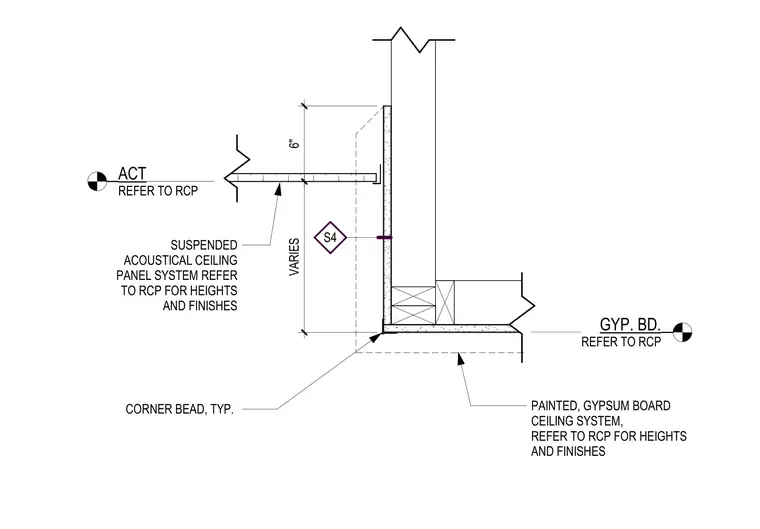

A suspended acoustical ceiling panel system terminates at a vertical wall surface with a variable vertical clearance of six inches. A painted gypsum board ceiling system meets the same wall at a lower elevation, finished with a typical corner bead at the intersection. Acoustical ceiling and gypsum board ceiling heights and finishes are to be verified per the reflected ceiling plan. Reference tag S4 indicates a structural or specific connection point at the wall face.
