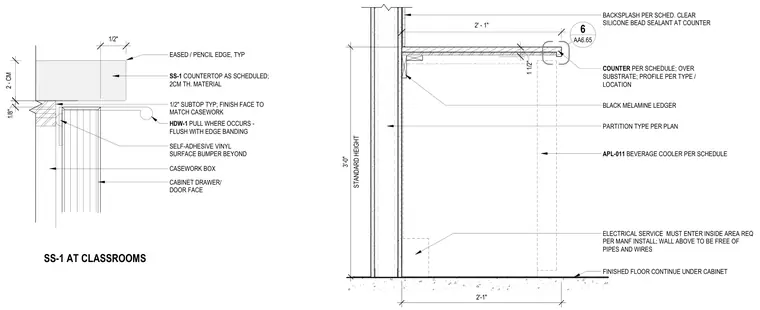

Casework countertop assembly mounted to a standard-height partition wall. The assembly features a two-centimeter thick SS-1 material countertop with an eased pencil edge, resting on a one-half-inch subtop and a black melamine ledger attached to the partition. Below the counter, space is provided for a beverage cooler, with finished flooring continuing underneath and electrical service routed according to manufacturer requirements. Cabinet doors and drawers include self-adhesive vinyl surface bumpers and hardware pulls flush with edge banding.
CASEWORK BOX SS-1 COUNTERTOP AS SCHEDULED; 2CM TH. MATERIAL EASED / PENCIL EDGE, TYP SELF-ADHESIVE VINYL SURFACE BUMPER BEYOND CABINET DRAWER/ DOOR FACE 1/2" SUBTOP TYP; FINISH FACE TO MATCH CASEWORK HDW-1 PULL WHERE OCCURS - FLUSH WITH EDGE BANDING 1/8" 2 - CM 1/2" SS-1 AT CLASSROOMS COUNTER PER SCHEDULE; OVER SUBSTRATE; PROFILE PER TYPE / LOCATION STANDARD HEIGHT 3'-0" PARTITION TYPE PER PLAN 2'-1" APL-011 BEVERAGE COOLER PER SCHEDULE 1 1/2" FINISHED FLOOR CONTINUE UNDER CABINET ELECTRICAL SERVICE MUST ENTER INSIDE AREA REQ PER MANF INSTALL; WALL ABOVE TO BE FREE OF PIPES AND WIRES BACKSPLASH PER SCHED. CLEAR SILICONE BEAD SEALANT AT COUNTER 2' - 1" AA6.65 6 BLACK MELAMINE LEDGER
