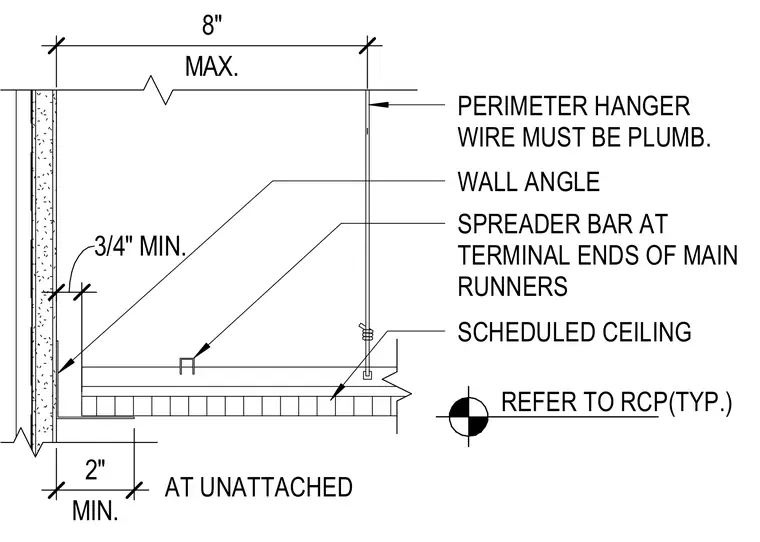

A wall angle supports the perimeter of a scheduled suspended ceiling system against a finished wall. A perimeter hanger wire is installed plumb and located a maximum of 8 inches from the wall. A spreader bar is positioned at the terminal ends of the main runners. A minimum 3/4-inch clearance is maintained at the wall interface, and a minimum 2-inch clearance is provided at unattached conditions.
REFER TO RCP(TYP.) SCHEDULED CEILING MAX. 8" MIN. 2" 3/4" MIN. PERIMETER HANGER WIRE MUST BE PLUMB. AT UNATTACHED SPREADER BAR AT TERMINAL ENDS OF MAIN RUNNERS WALL ANGLE
