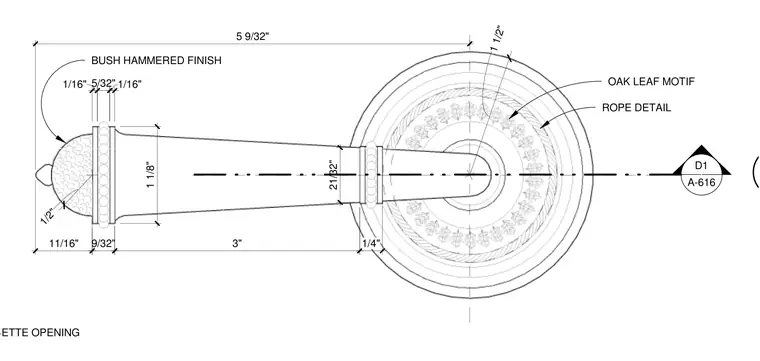

A Schlage cassette door lever features a bush-hammered finish at the tip, decorative rope detailing, and an oak leaf motif on the rosette. Precise dimensions govern the overall length of five and nine-thirty-seconds inches, a lever body height of one and one-eighth inches tapering to twenty-one thirty-seconds of an inch, and various ornamental spacings. Additional dimensions indicate a one-half inch radius at the tip and specific banding widths.
SCHLAGE CASSETTE OPENING 5 9/32" 1 1/2" 1/2" 1/16" 5/32" 1/16" 21/32" 9/32" 11/16" 3" 1/4" BUSH HAMMERED FINISH OAK LEAF MOTIF ROPE DETAIL 1 1/8" D1 A-616
