Text on the drawing

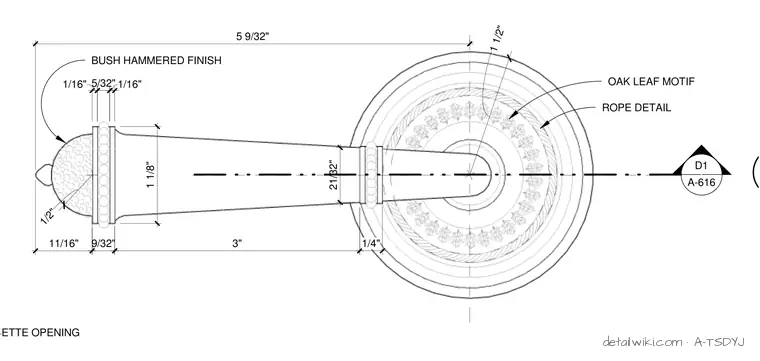

SCHLAGE CASSETTE OPENING 5 9/32" 1 1/2" 1/2" 1/16" 5/32" 1/16" 21/32" 9/32" 11/16" 3" 1/4" BUSH HAMMERED FINISH OAK LEAF MOTIF ROPE DETAIL 1 1/8" D1 A-616
