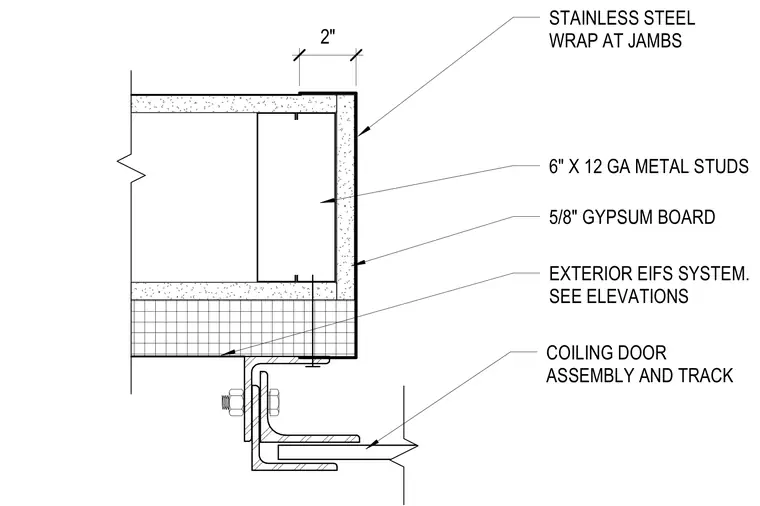

A coiling door assembly and track attach adjacent to an exterior wall framed with six-inch twelve-gauge metal studs and finished with five-eighths-inch gypsum board on the interior. The jamb features a stainless steel wrap transitioning to a two-inch exterior EIFS system.
COILING DOOR ASSEMBLY AND TRACK 5/8" GYPSUM BOARD 6" X 12 GA METAL STUDS STAINLESS STEEL WRAP AT JAMBS 2" EXTERIOR EIFS SYSTEM. SEE ELEVATIONS
