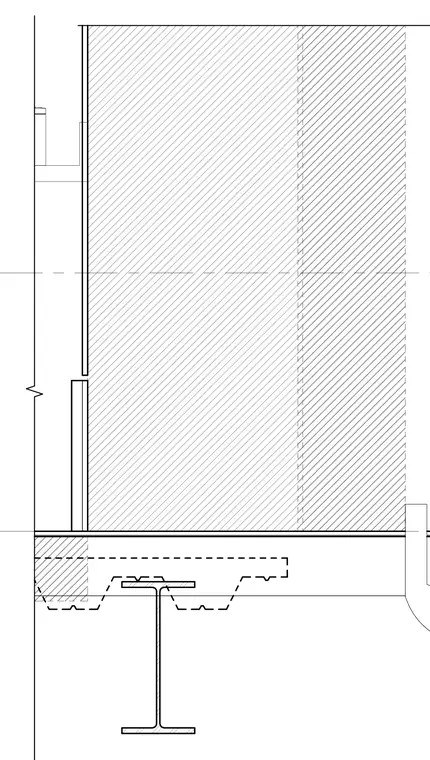

An exterior wall assembly bears upon a structural steel wide-flange beam supporting a composite metal deck and concrete slab. The wall construction includes an exterior skin with vertical framing components and an interior finish layer. A floor slab edge condition interfaces with the exterior cladding system. Continuous alignment lines and reference planes establish the vertical and horizontal datums for the assembly.
