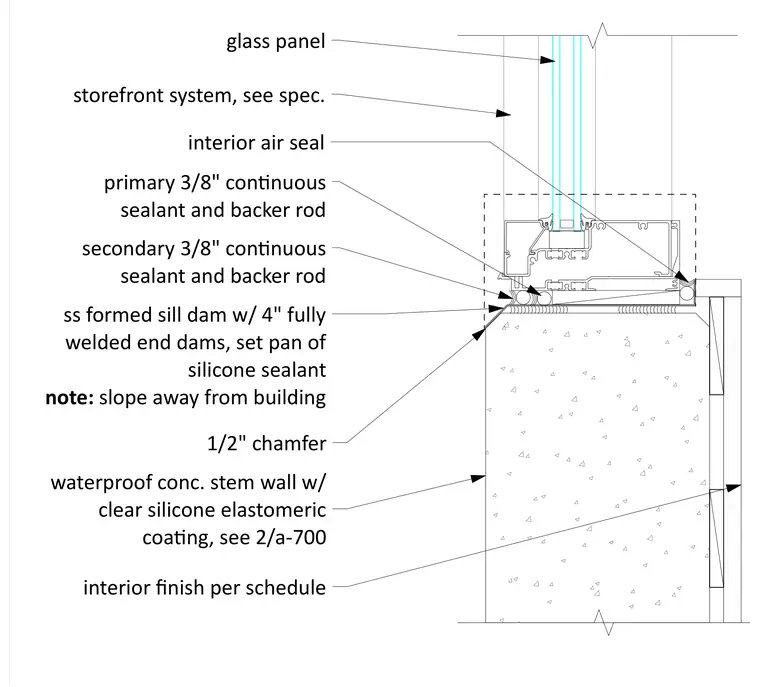

A storefront system is mounted on a waterproof concrete stem wall featuring a one-half-inch chamfer at the exterior edge and a clear silicone elastomeric coating. The aluminum sill member sits over a stainless steel formed sill dam with four-inch fully welded end dams, set in a pan of silicone sealant with a slope away from the building. Primary and secondary three-eighths-inch continuous sealant joints with backer rods seal the exterior junction, while an interior air seal and interior finish complete the base of the glass panel assembly.
waterproof conc. stem wall w/ clear silicone elastomeric coa Ɵng, se e 2/a-700 1/2" chamfer storefront system, see spec. interior air seal glass panel interior finish per schedule ss formed sill dam w/ 4" fully welded end dams, set pan of silicone sealant note: slope away from building primary 3/8" con Ɵnuous sealant and backer rod secondary 3/8" con Ɵnuous sealant and backer rod
