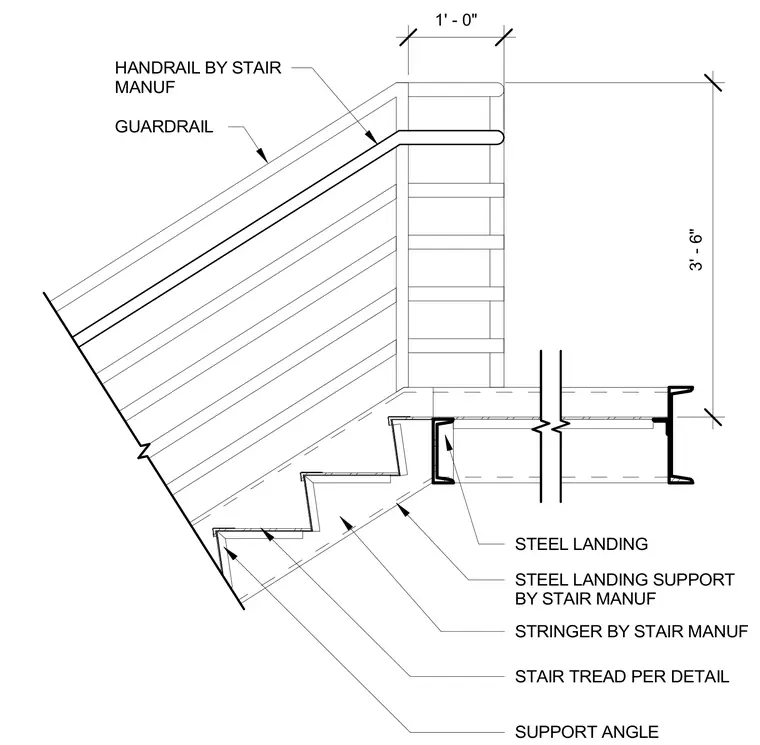

A steel guardrail and handrail assembly meets a stair landing at the transition from the stair stringer. The guardrail stands three feet six inches high above the stair nosing and landing level. A support angle connects the stair tread per detail to the steel landing support provided by the stair manufacturer. The stair stringer and handrail are also provided by the stair manufacturer.
STEEL LANDING SUPPORT BY STAIR MANUF STRINGER BY STAIR MANUF HANDRAIL BY STAIR MANUF STEEL LANDING STAIR TREAD PER DETAIL GUARDRAIL 1' - 0" 3' - 6" SUPPORT ANGLE
