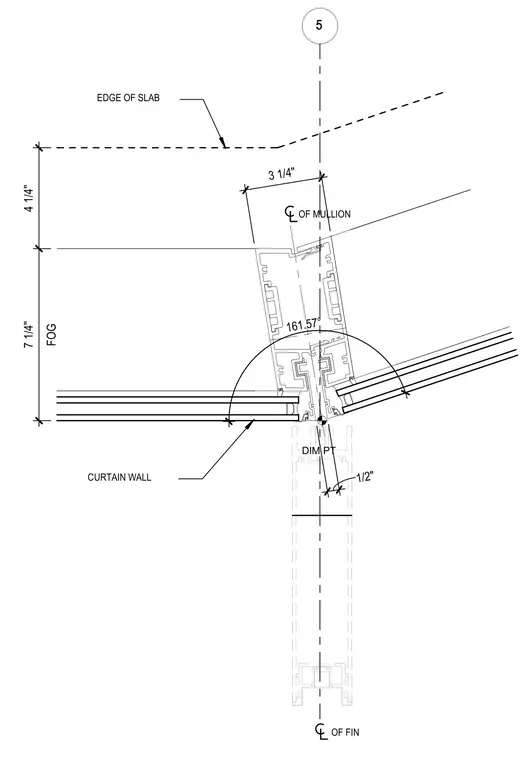

A curtain wall corner assembly is set to a 161.57 degree angle relative to the edge of the slab. The dimension from the edge of the slab to the centerline of the mullion is four and one-quarter inches, with an additional seven and one-quarter inches to the face of glass. The centerline of the mullion sits three and one-quarter inches from the dimension point, which is offset one-half inch from the centerline of the fin.
5 EDGE OF SLAB DIM PT 1 / 2 " OF MULLION OF FIN 1 6 1 . 5 7 ° 3 1 / 4 " CURTAIN WALL 4 1 / 4 " F O G 7 1 / 4 "
