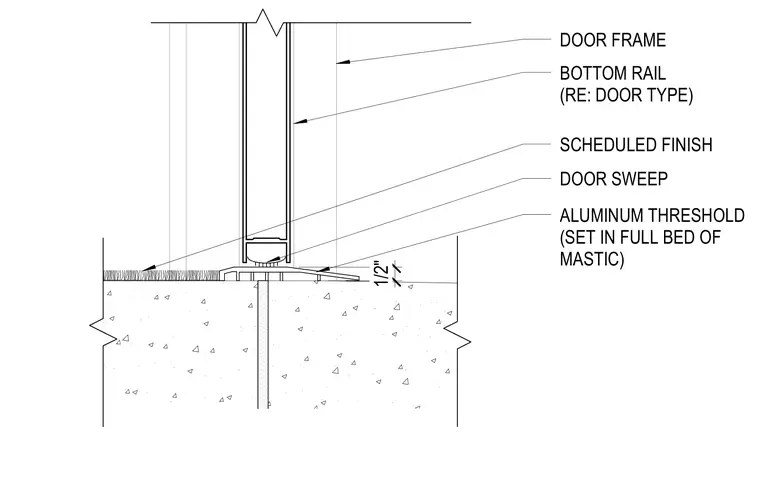

An extruded aluminum threshold rests on a full bed of mastic above the concrete floor slab. The threshold features a one-half-inch rise profile and accommodates a door bottom rail equipped with an integrated door sweep. A scheduled finish is applied to the door assembly, and the adjacent frame transitions to the floor.
DOOR SWEEP BOTTOM RAIL (RE: DOOR TYPE) ALUMINUM THRESHOLD (SET IN FULL BED OF MASTIC) DOOR FRAME 1/2" SCHEDULED FINISH
