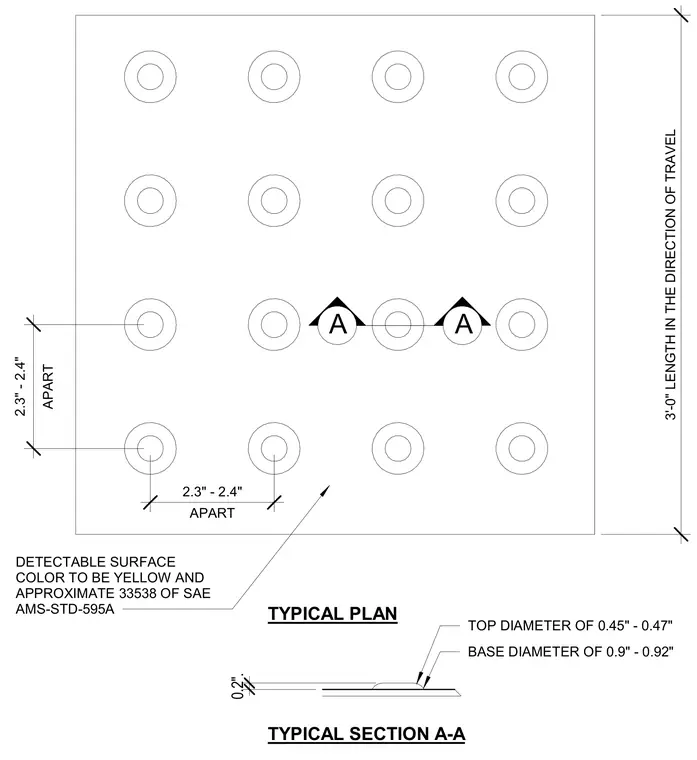

A detectable warning surface spans 3 feet in the direction of travel. Truncated domes have a top diameter of 0.45 inches to 0.47 inches, a base diameter of 0.9 inches to 0.92 inches, and a height of 0.2 inches. Domes are spaced 2.3 inches to 2.4 inches apart. Surface color is yellow, approximating 33538 of SAE AMS-STD-595A.
A A TYPICAL PLAN TYPICAL SECTION A-A APART 2.3" - 2.4" APART 2.3" - 2.4" 3'-0" LENGTH IN THE DIRECTION OF TRAVEL TOP DIAMETER OF 0.45" - 0.47" 0.2". BASE DIAMETER OF 0.9" - 0.92" DETECTABLE SURFACE COLOR TO BE YELLOW AND APPROXIMATE 33538 OF SAE AMS-STD-595A
