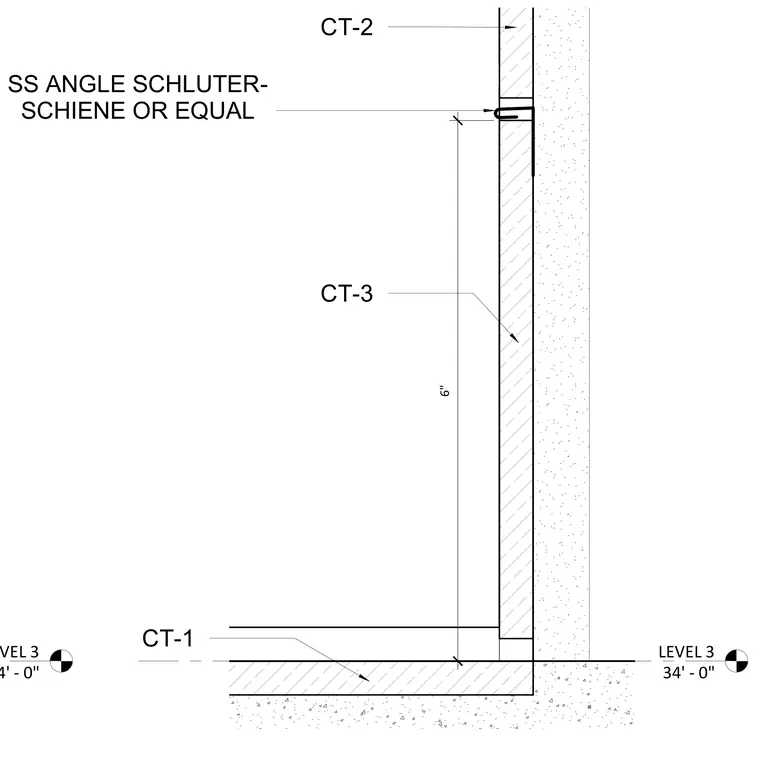

Ceramic tile finishes the wall assembly with tile types CT-2 and CT-3 installed over the substrate. A stainless steel Schluter-Schiene edge trim or equal protects and finishes the tile edge. A six-inch vertical dimension establishes the spacing from the floor assembly up to the trim profile.
LEVEL 3 34' - 0" LEVEL 3 34' - 0" CT-3 CT-2 SS ANGLE SCHLUTER- SCHIENE OR EQUAL CT-1 6"
