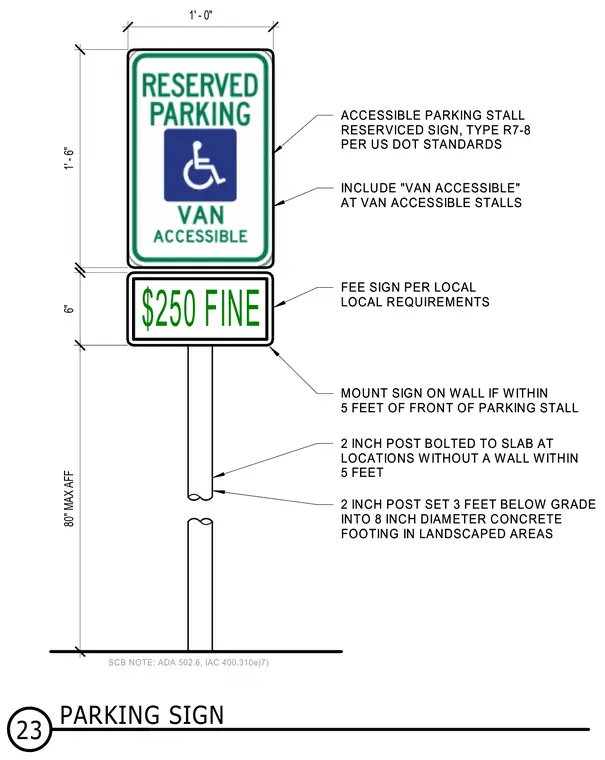

An accessible parking stall reserved sign complying with US Department of Transportation standards is mounted alongside a local fine sign on a two-inch post. The post is either bolted directly to the concrete slab or set three feet below grade into an eight-inch diameter concrete footing in landscaped areas. The sign assembly maintains a maximum height of eighty inches above the finished floor to the bottom of the sign. Additional van accessible sign riders are included at designated van accessible stalls, or signs may be mounted directly to an adjacent wall if located within five feet of the front of the parking stall.
80" MAX AFF 6" 1' - 6" ACCESSIBLE PARKING STALL RESERVICED SIGN, TYPE R7-8 PER US DOT STANDARDS FEE SIGN PER LOCAL LOCAL REQUIREMENTS INCLUDE "VAN ACCESSIBLE" AT VAN ACCESSIBLE STALLS MOUNT SIGN ON WALL IF WITHIN 5 FEET OF FRONT OF PARKING STALL 2 INCH POST BOLTED TO SLAB AT LOCATIONS WITHOUT A WALL WITHIN 5 FEET 2 INCH POST SET 3 FEET BELOW GRADE INTO 8 INCH DIAMETER CONCRETE FOOTING IN LANDSCAPED AREAS 1' - 0" $250 FINE SCB NOTE: ADA 502.6, IAC 400.310e)7) ACCESSIBLE PARKING STALL RESERVICED SIGN, TYPE R7-8 PER US DOT STANDARDS FEE SIGN PER LOCAL LOCAL REQUIREMENTS INCLUDE "VAN ACCESSIBLE" AT VAN ACCESSIBLE STALLS MOUNT SIGN ON WALL IF WITHIN 5 FEET OF FRONT OF PARKING STALL 2 INCH POST BOLTED TO SLAB AT LOCATIONS WITHOUT A WALL WITHIN 5 FEET 2 INCH POST SET 3 FEET BELOW GRADE INTO 8 INCH DIAMETER CONCRETE FOOTING IN LANDSCAPED AREAS 23 PARKING SIGN
