An exterior door or storefront system head condition is installed in a concrete wall. The hollow metal or aluminum frame is secured beneath a concrete wall with continuous sealant caulking on each side for weatherproofing. A Pemko door top weather strip is fastened to the frame using factory-provided number six by five-eighths inch Phillips flat head sheet metal screws. The door leaf is painted to match the frame as specified by the owner.

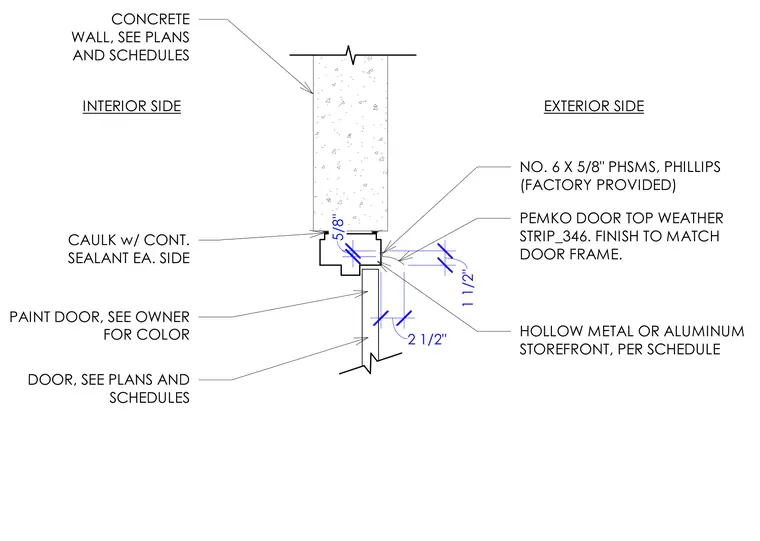

EXTERIOR SIDE INTERIOR SIDE CONCRETE WALL, SEE PLANS AND SCHEDULES DOOR, SEE PLANS AND SCHEDULES CAULK w/ CONT. SEALANT EA. SIDE PAINT DOOR, SEE OWNER FOR COLOR HOLLOW METAL OR ALUMINUM STOREFRONT, PER SCHEDULE PEMKO DOOR TOP WEATHER STRIP_346. FINISH TO MATCH DOOR FRAME. NO. 6 X 5/8" PHSMS, PHILLIPS (FACTORY PROVIDED) 2 1/2" 1 1/2" 5/8"
