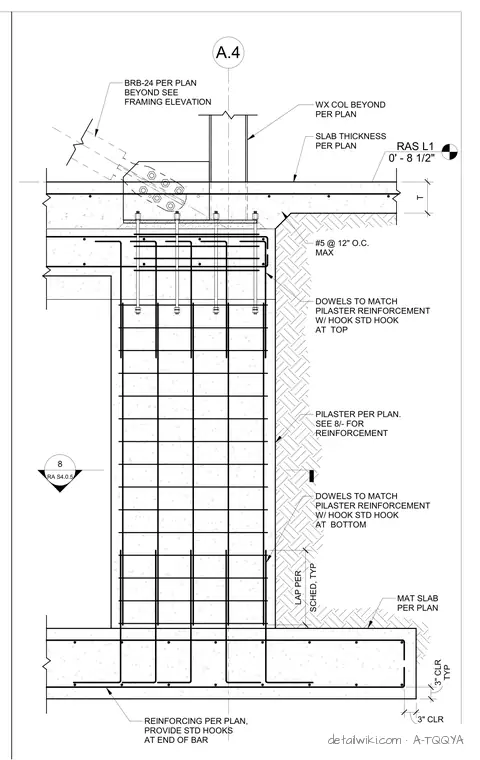

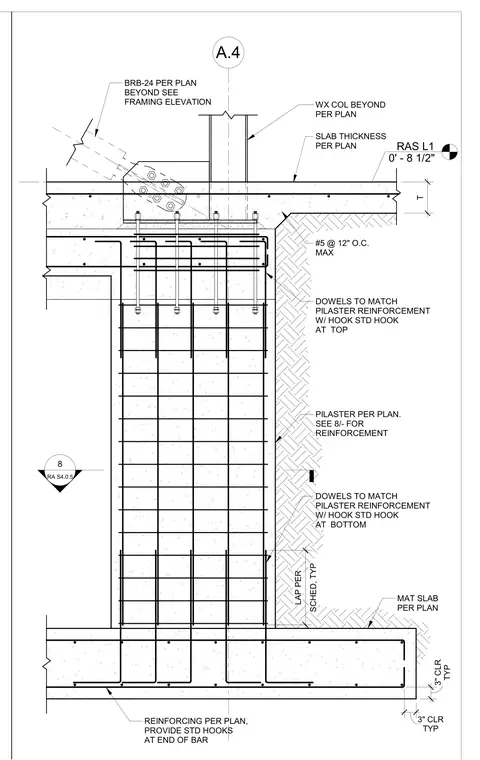

A concrete pit pilaster extends up from a mat slab foundation to support a structural wide-flange column and a buckling-restrained brace seen beyond per plan. The reinforced concrete slab features number five bars at twelve inches on center maximum with three inches of typical clearance. Vertical dowels matching the pilaster reinforcement are provided with standard hooks at the top and bottom. The foundation mat slab includes reinforcing per plan with standard hooks at the ends of the bars and three inches of typical clearance.
A.4 RAS L1 0' - 8 1/2" WX COL BEYOND PER PLAN BRB-24 PER PLAN BEYOND SEE FRAMING ELEVATION PILASTER PER PLAN. SEE 8/- FOR REINFORCEMENT SLAB THICKNESS PER PLAN T #5 @ 12" O.C. MAX SCHED, TYP LAP PER DOWELS TO MATCH PILASTER REINFORCEMENT W/ HOOK STD HOOK AT TOP DOWELS TO MATCH PILASTER REINFORCEMENT W/ HOOK STD HOOK AT BOTTOM MAT SLAB PER PLAN TYP 3" CLR TYP 3" CLR REINFORCING PER PLAN, PROVIDE STD HOOKS AT END OF BAR 8 RA S4.0.5
