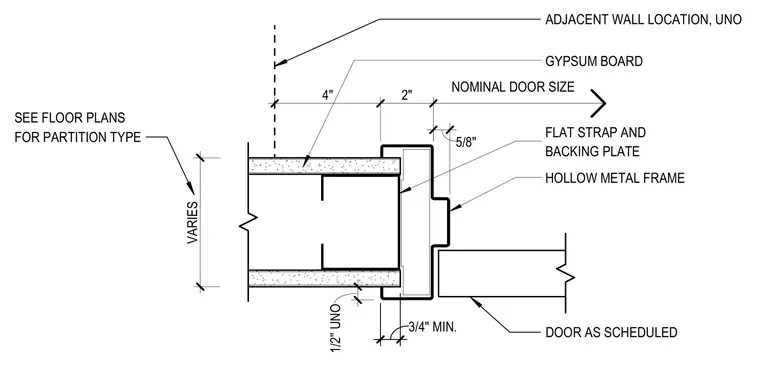

A hollow metal door frame is set into a partition wall finished with gypsum board. The frame connects to the wall framing using a flat strap and backing plate. Dimensions indicate a four-inch spacing from the adjacent wall location, a two-inch frame face dimension, and a three-quarter-inch minimum return. The door itself is provided as scheduled.
GYPSUM BOARD FLAT STRAP AND BACKING PLATE HOLLOW METAL FRAME 3 / 4 " M I N . DOOR AS SCHEDULED 4 " 2 " ADJACENT WALL LOCATION, UNO 5 / 8 " NOMINAL DOOR SIZE 1 / 2 " U N O V A R I E S SEE FLOOR PLANS FOR PARTITION TYPE
