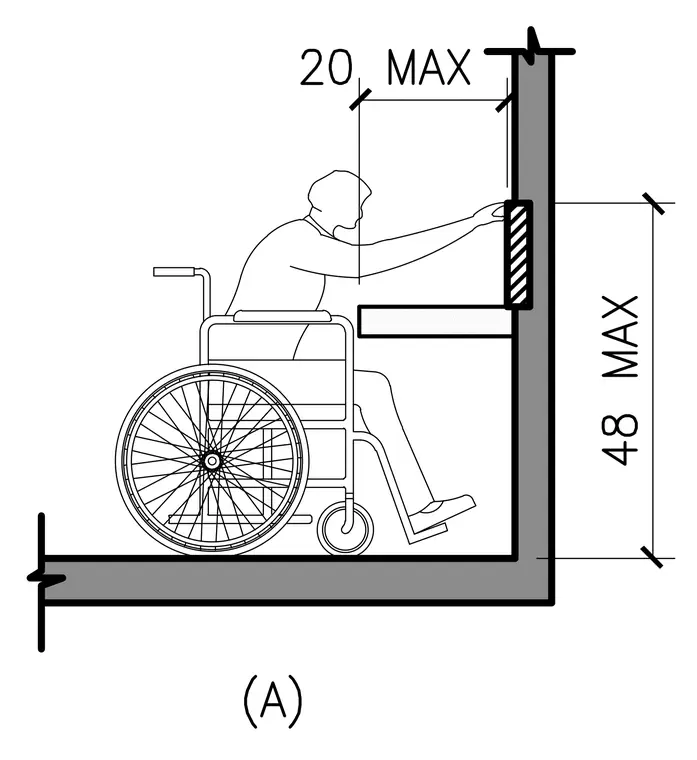

An accessible counter setup features a forward reach configuration for a wheelchair user against a vertical wall. The wall-mounted counter or control element maintains a maximum height of forty-eight inches above the finished floor. The horizontal reach distance from the front edge of the counter or wall allows a maximum of twenty inches to the operable part or accessory.
