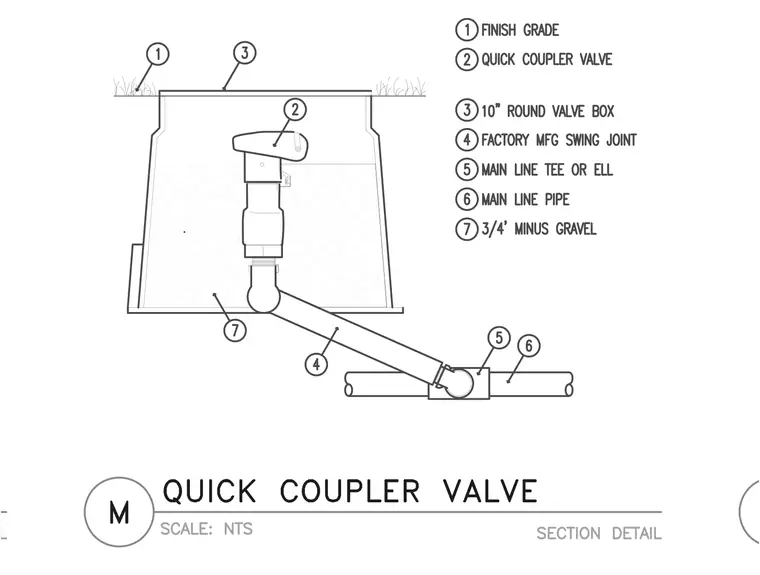

A quick coupler valve is connected to a main line tee or ell via a factory manufactured swing joint and set within a ten-inch round valve box. The assembly rests on a bed of three-quarter inch minus gravel below finish grade and connects to the main line pipe.
