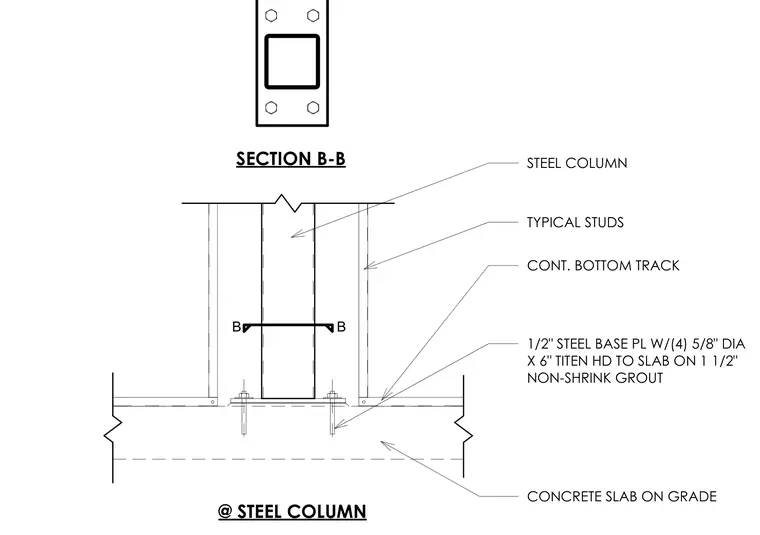

A steel column bears on a one-half-inch steel base plate set over one and one-half inches of non-shrink grout on a concrete slab on grade. Four five-eighths-inch diameter by six-inch Titen HD concrete screws anchor the base plate into the slab. Continuous bottom tracks and typical vertical framing studs flank the steel column.
STEEL COLUMN TYPICAL STUDS CONT. BOTTOM TRACK 1/2" STEEL BASE PL W/(4) 5/8" DIA X 6" TITEN HD TO SLAB ON 1 1/2" NON-SHRINK GROUT CONCRETE SLAB ON GRADE B B @ STEEL COLUMN SECTION B-B
