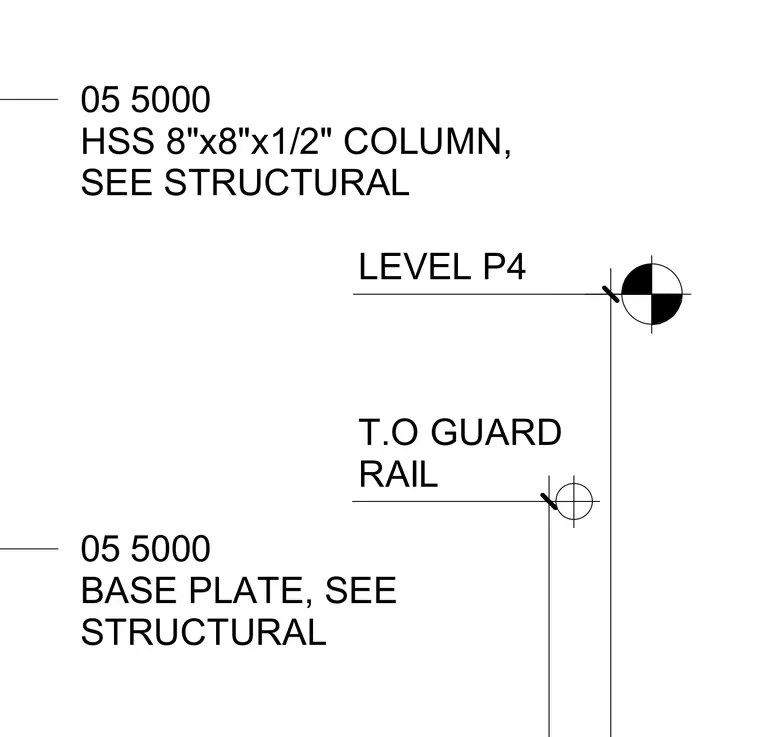

An 8-inch by 8-inch by 1/2-inch hollow structural section steel column connects to a base plate at Level P4, with the top of the guard rail located at the specified level elevation per structural drawings.
LEVEL P4 05 5000 HSS 8"x8"x1/2" COLUMN, SEE STRUCTURAL 05 5000 BASE PLATE, SEE STRUCTURAL T.O GUARD RAIL
