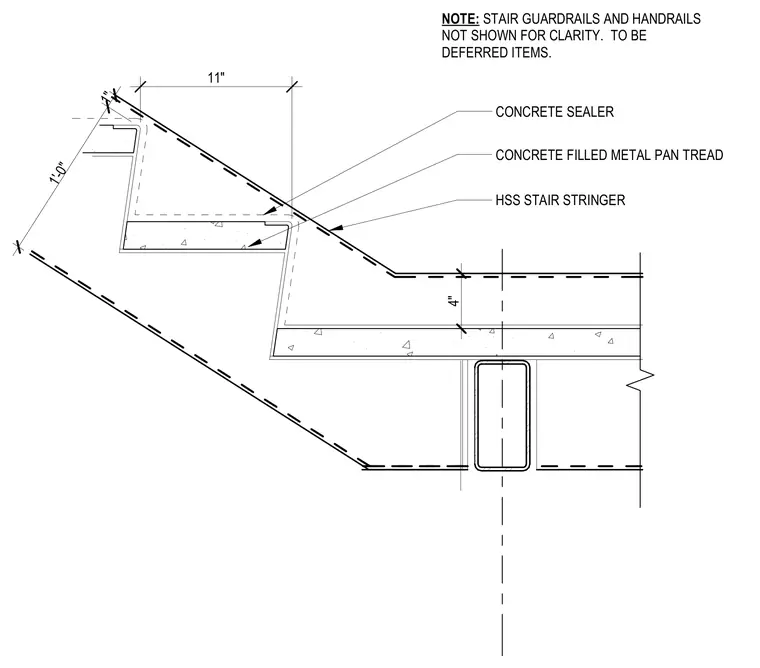

Concrete-filled metal pan treads are supported by a hollow structural section stair stringer at an intermediate landing, finished with a concrete sealer. Stair guardrails and handrails are omitted for clarity as deferred items. Dimensions indicate an eleven inch tread depth, a one foot rise, and a four inch landing slab thickness.
11" NOTE: STAIR GUARDRAILS AND HANDRAILS NOT SHOWN FOR CLARITY. TO BE DEFERRED ITEMS. CONCRETE FILLED METAL PAN TREAD HSS STAIR STRINGER CONCRETE SEALER 4" 1'-0" 1"
