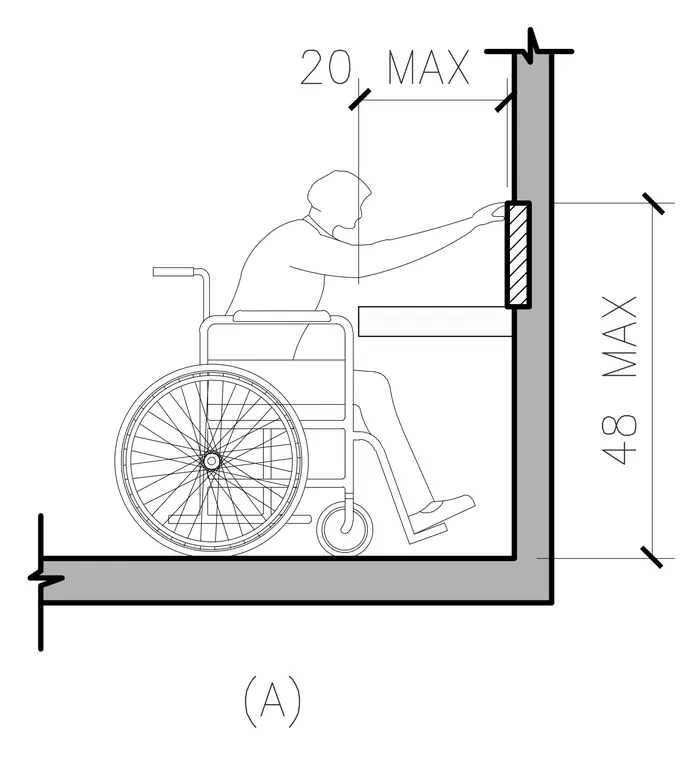

An accessible forward reach over an obstruction to a wall-mounted control or element is limited to a maximum depth of twenty inches. The maximum allowable height to the operable part is forty-eight inches above the finished floor.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
