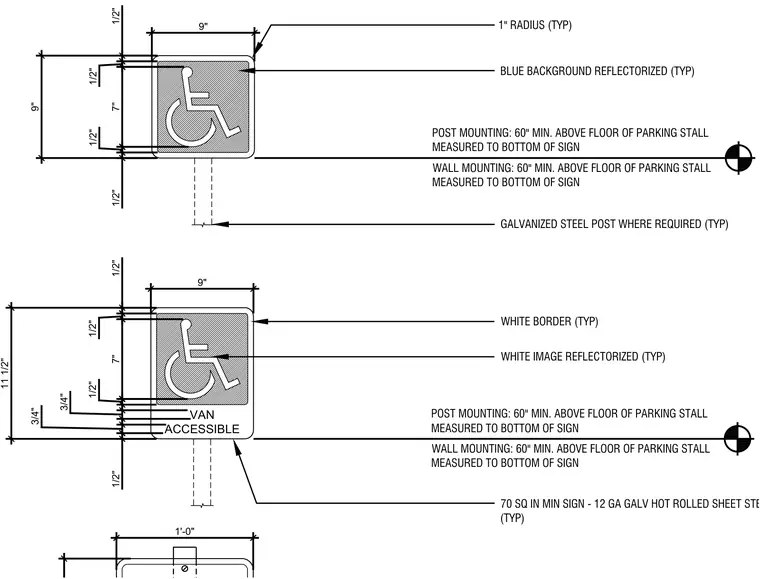

Accessible parking signs are fabricated from twelve-gauge galvanized hot-rolled sheet steel with a minimum area of seventy square inches, featuring a blue reflectorized background, white reflectorized wheelchair image, and white border with one-inch typical radii. Standard and van-accessible variants are detailed with specific panel dimensions and border spacings. Mounting requires the bottom of the sign to be positioned a minimum of sixty inches above the floor of the parking stall, supported by a galvanized steel post where required or directly mounted to a wall.
1'-0" VAN 3/4" 3/4" 1/2" 7" ACCESSIBLE 11 1/2" 1/2" 70 SQ IN MIN SIGN - 12 GA GALV HOT ROLLED SHEET STEEL (TYP) WHITE IMAGE REFLECTORIZED (TYP) 9" 9" 1/2" 1/2" 1/2" 1/2" 7" 1/2" 9" 1/2" WHITE BORDER (TYP) GALVANIZED STEEL POST WHERE REQUIRED (TYP) 1" RADIUS (TYP) BLUE BACKGROUND REFLECTORIZED (TYP) POST MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN WALL MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN POST MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN WALL MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN
