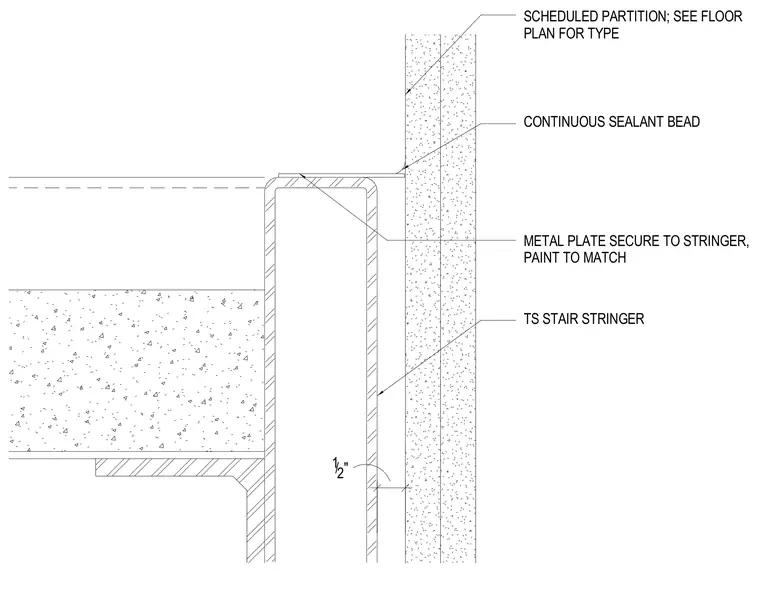

A tubular steel stair stringer runs parallel to a scheduled partition wall with a half-inch clearance gap. A continuous sealant bead fills the joint at the wall interface. A metal plate is secured to the top of the stair stringer and painted to match.
1/2" SCHEDULED PARTITION; SEE FLOOR PLAN FOR TYPE CONTINUOUS SEALANT BEAD TS STAIR STRINGER METAL PLATE SECURE TO STRINGER, PAINT TO MATCH
