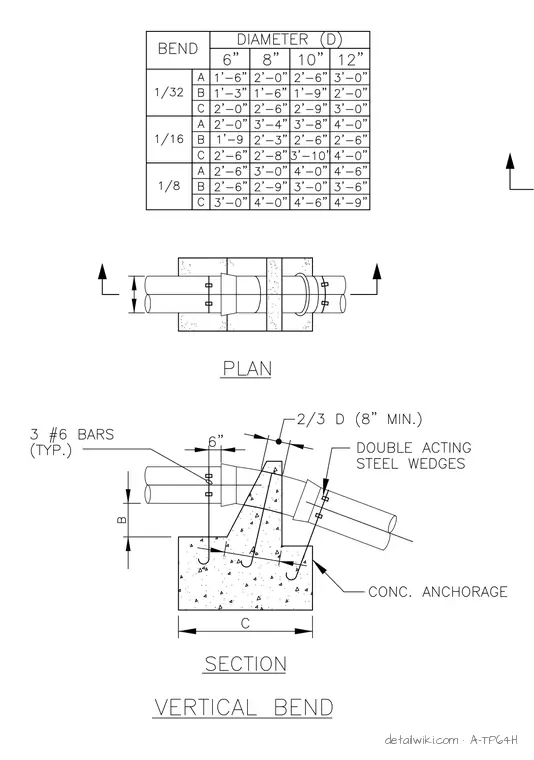

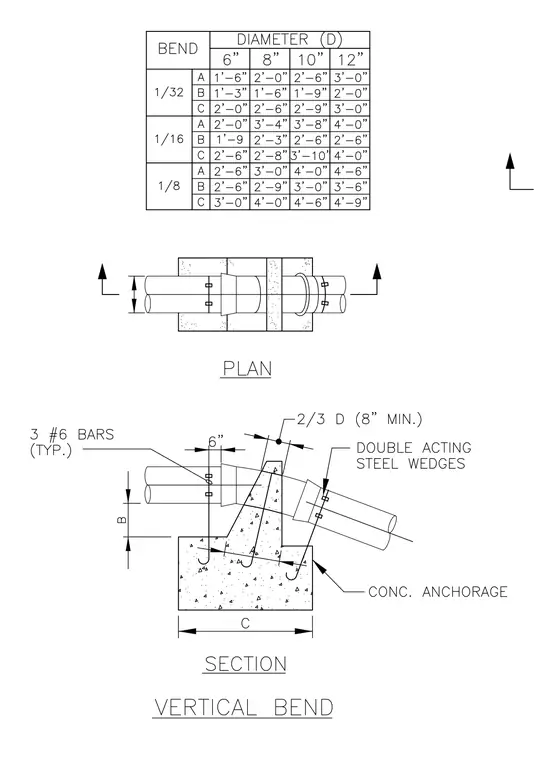

A concrete anchorage block restrains a vertical pipe bend using double-acting steel wedges and three number 6 reinforcing bars placed as typical. The design incorporates a bend diameter schedule with specific dimensions for bend radii ranging from six inches to twelve inches and slope grades from one-thirty-second to one-eighth. The concrete anchorage bears against the pipe fitting while maintaining clearance requirements defined by two-thirds of the pipe diameter with an eight-inch minimum. The section and plan views outline the dimensional layout parameters labeled as B and C corresponding to the schedule values.
