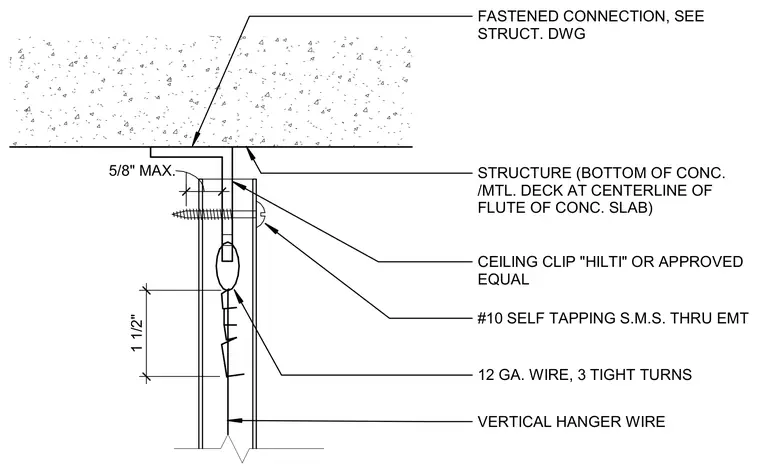

A proprietary ceiling clip secures to the underside of a concrete or metal deck floor slab via a structural fastening connection. A vertical hanger wire is tied below with three tight turns spaced one and one-half inches apart. The wire passes through electrical metallic tubing secured by a number ten self-tapping sheet metal screw. A maximum clearance of five-eighths of an inch is maintained at the upper attachment.
FASTENED CONNECTION, SEE STRUCT. DWG STRUCTURE (BOTTOM OF CONC. /MTL. DECK AT CENTERLINE OF FLUTE OF CONC. SLAB) CEILING CLIP "HILTI" OR APPROVED EQUAL #10 SELF TAPPING S.M.S. THRU EMT 12 GA. WIRE, 3 TIGHT TURNS VERTICAL HANGER WIRE 1 1/2" 5/8" MAX.
