Base Cabinet W/ Drawer & Open Shelf (F)

Materials

Elements

About this detail

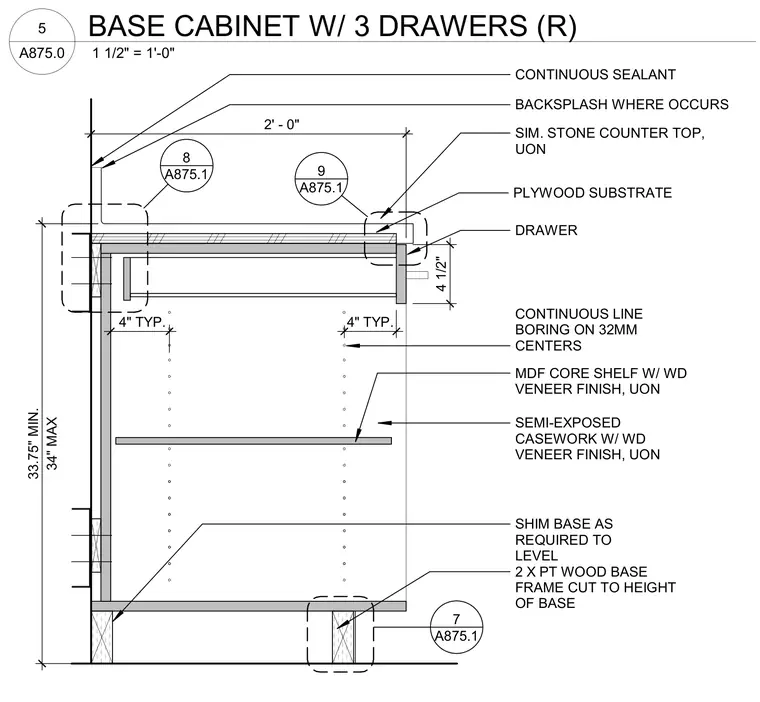

The base cabinet assembly sits on a two-inch pressure-treated wood base frame cut to the height of the base, shimmed as required to level. The cabinet features semi-exposed casework with wood veneer finish, continuous line boring on thirty-two millimeter centers, and medium-density fiberboard core shelving with wood veneer finish. A plywood substrate supports a simulated stone countertop with an optional four-and-a-half-inch backsplash and continuous sealant at the wall intersection. Drawers are integrated into the upper casework.
