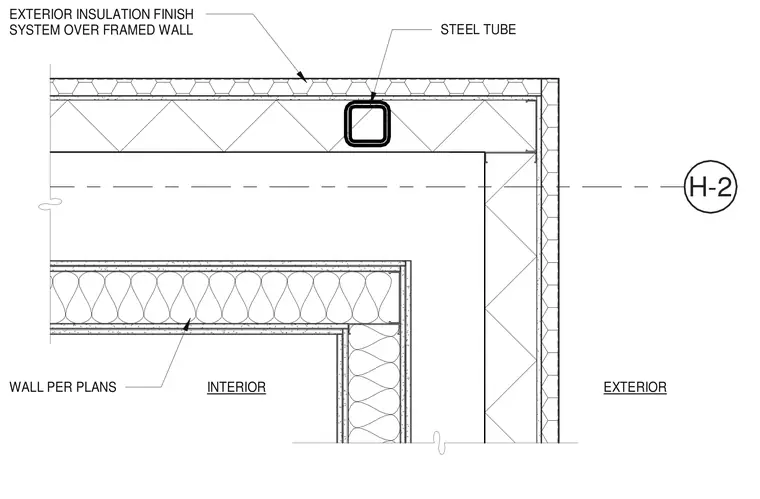

A two-hour fire-rated stair wall corner assembly intersects the roof structure. The exterior facade consists of an exterior insulation finish system installed over framed walls, incorporating a hollow structural section steel tube within the perimeter zone. Interior partitions are constructed per plans with layered wall assemblies providing required fire separation.
H-2 EXTERIOR INTERIOR EXTERIOR INSULATION FINISH SYSTEM OVER FRAMED WALL WALL PER PLANS STEEL TUBE
