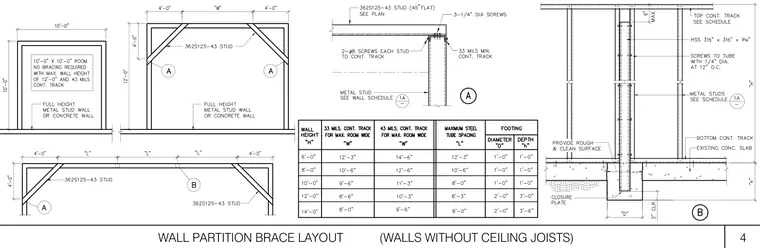

Cold-formed metal framing partitions without ceiling joists require diagonal brace layouts utilizing 362S125-43 studs oriented at a forty-five degree flat angle. Two number eight screws secure each stud to the continuous track at connection points. Structural support utilizes hollow structural section tubes and continuous tracks anchored to existing concrete slabs with concrete footings. Spacing and dimensions vary according to wall heights and room widths as defined in the accompanying schedule.
