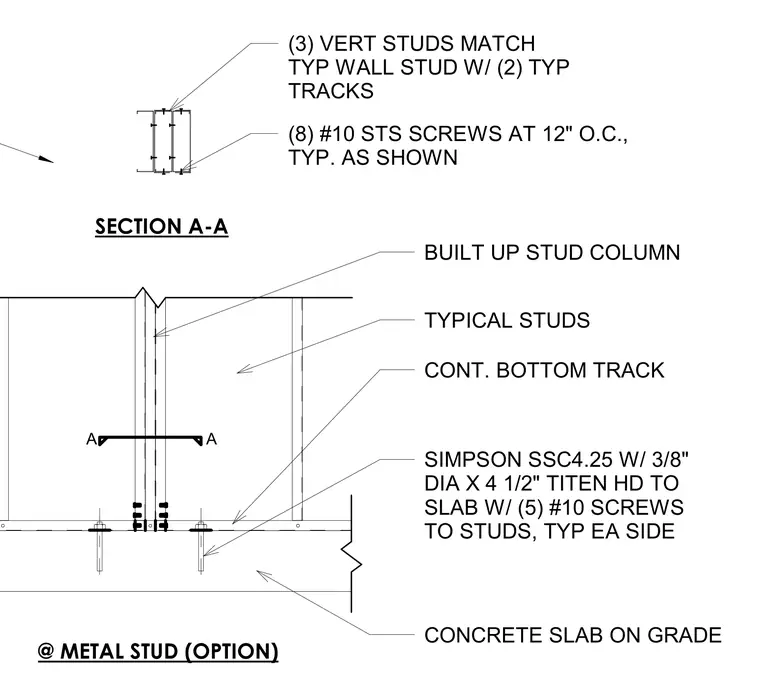

A built-up stud column is anchored to a concrete slab on grade using a continuous bottom track and Simpson SSC4.25 anchors secured with 3/8-inch diameter by 4-1/2-inch Titen HD bolts. Typical wall studs flank the built-up column, which consists of three vertical studs matching the typical wall stud section paired with two typical tracks. Five number 10 self-drilling screws connect the tracks to the studs on each side, supplemented by eight number 10 steel-to-steel screws spaced at 12 inches on center.
SECTION A-A BUILT UP STUD COLUMN TYPICAL STUDS CONT. BOTTOM TRACK SIMPSON SSC4.25 W/ 3/8" DIA X 4 1/2" TITEN HD TO SLAB W/ (5) #10 SCREWS TO STUDS, TYP EA SIDE CONCRETE SLAB ON GRADE A A @ METAL STUD (OPTION) (3) VERT STUDS MATCH TYP WALL STUD W/ (2) TYP TRACKS (8) #10 STS SCREWS AT 12" O.C., TYP. AS SHOWN
