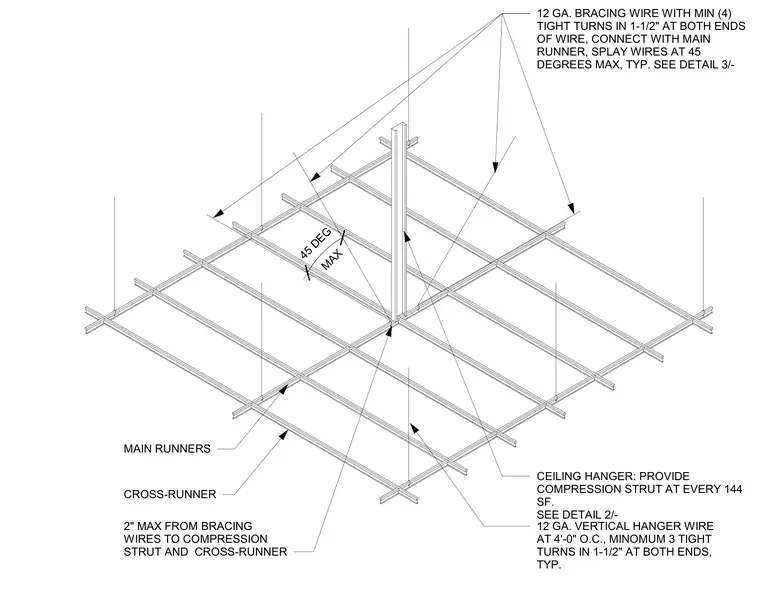

Suspended ceiling grid assemblies require a central compression strut flanked by splayed 12-gauge bracing wires anchored at a maximum forty-five-degree angle. Each wire connection requires a minimum of four tight turns within one and one-half inches at both ends. Main runners and cross-runners tie into the vertical compression strut spaced at every one hundred forty-four square feet. Twelve-gauge vertical hanger wires secure the grid at four feet on center with a minimum of three tight turns in one and one-half inches.
12 GA. BRACING WIRE WITH MIN (4) TIGHT TURNS IN 1-1/2" AT BOTH ENDS OF WIRE, CONNECT WITH MAIN RUNNER, SPLAY WIRES AT 45 DEGREES MAX, TYP. SEE DETAIL 3/- MAX 45 DEG CEILING HANGER: PROVIDE COMPRESSION STRUT AT EVERY 144 SF. SEE DETAIL 2/- MAIN RUNNERS CROSS-RUNNER 2" MAX FROM BRACING WIRES TO COMPRESSION STRUT AND CROSS-RUNNER 12 GA. VERTICAL HANGER WIRE AT 4'-0" O.C., MINOMUM 3 TIGHT TURNS IN 1-1/2" AT BOTH ENDS, TYP.
