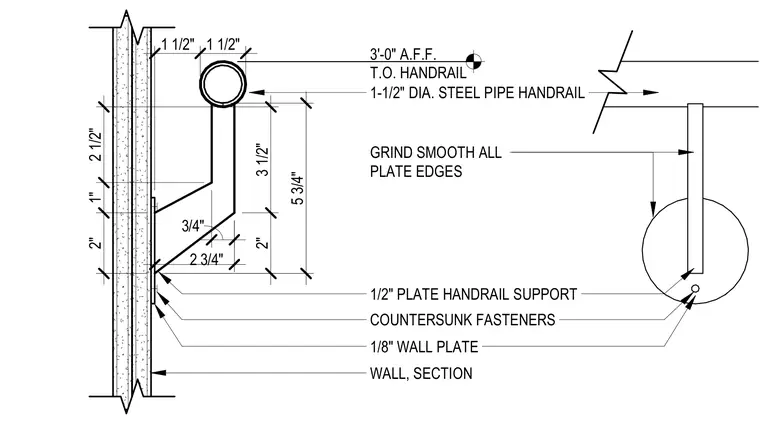

A one-and-one-half-inch diameter steel pipe handrail is mounted to a wall section at three feet zero inches above finished floor to the top of the handrail. The pipe is supported by a one-half-inch plate handrail support welded or connected to a one-eighth-inch wall plate. Countersunk fasteners secure the wall plate to the wall assembly. All plate edges are ground smooth.
3'-0" A.F.F. T.O. HANDRAIL WALL, SECTION 1-1/2" DIA. STEEL PIPE HANDRAIL 1/2" PLATE HANDRAIL SUPPORT COUNTERSUNK FASTENERS 1/8" WALL PLATE GRIND SMOOTH ALL PLATE EDGES 2" 1" 2 1/2" 2" 3 1/2" 5 3/4" 3/4" 2 3/4" 1 1/2" 1 1/2"
