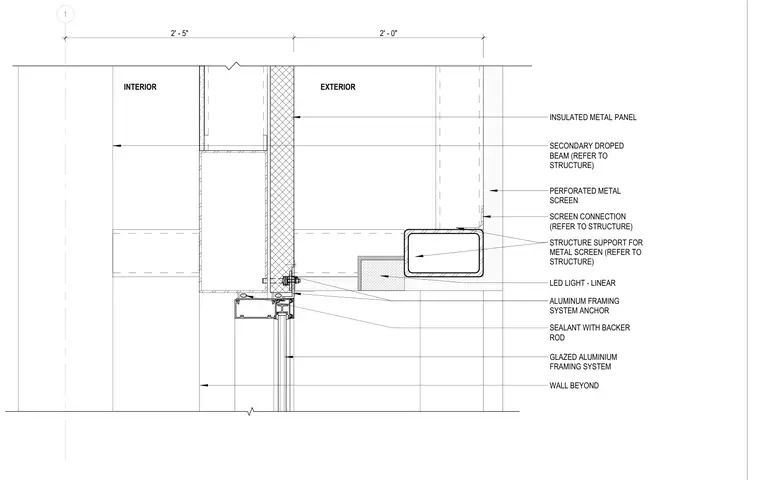

An exterior perforated metal screen mounts to a structural steel tube support connected back to the primary building framing. The exterior envelope features an insulated metal panel wall assembly alongside a glazed aluminum framing system. A linear LED light fixture is integrated adjacent to the structural support behind the screen. Sealant with a backer rod seals the joint between the aluminum framing system and the adjacent construction.
1 STRUCTURE SUPPORT FOR METAL SCREEN (REFER TO STRUCTURE) GLAZED ALUMINIUM FRAMING SYSTEM WALL BEYOND INSULATED METAL PANEL PERFORATED METAL SCREEN SECONDARY DROPED BEAM (REFER TO STRUCTURE) SEALANT WITH BACKER ROD ALUMINUM FRAMING SYSTEM ANCHOR SCREEN CONNECTION (REFER TO STRUCTURE) EXTERIOR INTERIOR 2' - 0" 2' - 5" LED LIGHT - LINEAR
