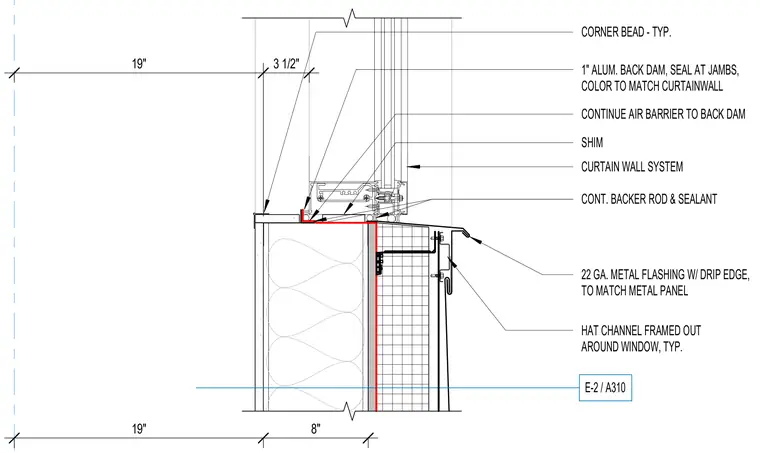

A 22 gauge metal flashing with a drip edge matches the metal panel curtain wall system and receives continuous backer rod and sealant beneath the sill. A one-inch aluminum back dam is sealed at the jambs in a color matching the curtain wall. The air barrier is continued to the back dam over shims, and hat channels are framed out around the window with typical corner beads.
22 GA. METAL FLASHING W/ DRIP EDGE, TO MATCH METAL PANEL CURTAIN WALL SYSTEM CONT. BACKER ROD & SEALANT SHIM CONTINUE AIR BARRIER TO BACK DAM 1" ALUM. BACK DAM, SEAL AT JAMBS, COLOR TO MATCH CURTAINWALL CORNER BEAD - TYP. E-2 / A310 19" 8" 19" 3 1/2" HAT CHANNEL FRAMED OUT AROUND WINDOW, TYP.
