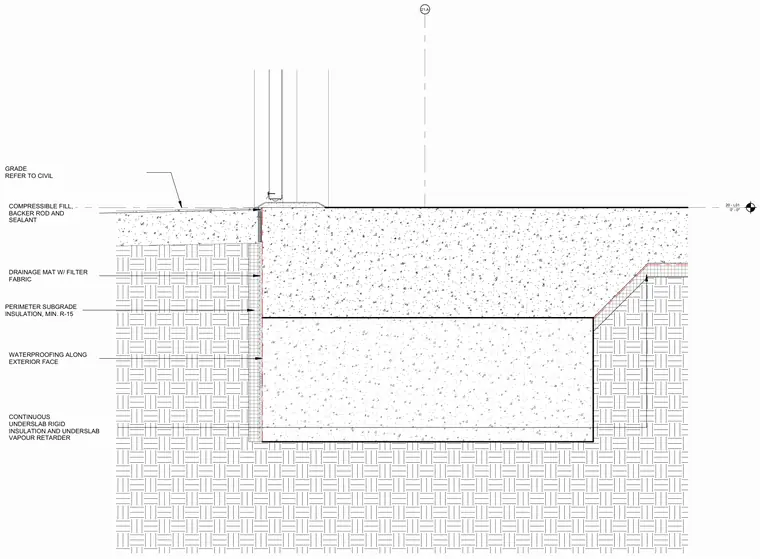

Continuous rigid insulation and vapor retarder are installed beneath the concrete slab on grade. The exterior foundation wall face receives waterproofing, minimum R-15 perimeter subgrade insulation, and a drainage mat with filter fabric. Compressible fill, backer rod, and sealant are detailed at the slab edge interface. Grade is sloped away from the structure as referenced on civil drawings.
20 - L01 0' - 0" 21.A GRADE REFER TO CIVIL DRAINAGE MAT W/ FILTER FABRIC PERIMETER SUBGRADE INSULATION, MIN. R-15 WATERPROOFING ALONG EXTERIOR FACE COMPRESSIBLE FILL, BACKER ROD AND SEALANT CONTINUOUS UNDERSLAB RIGID INSULATION AND UNDERSLAB VAPOUR RETARDER
