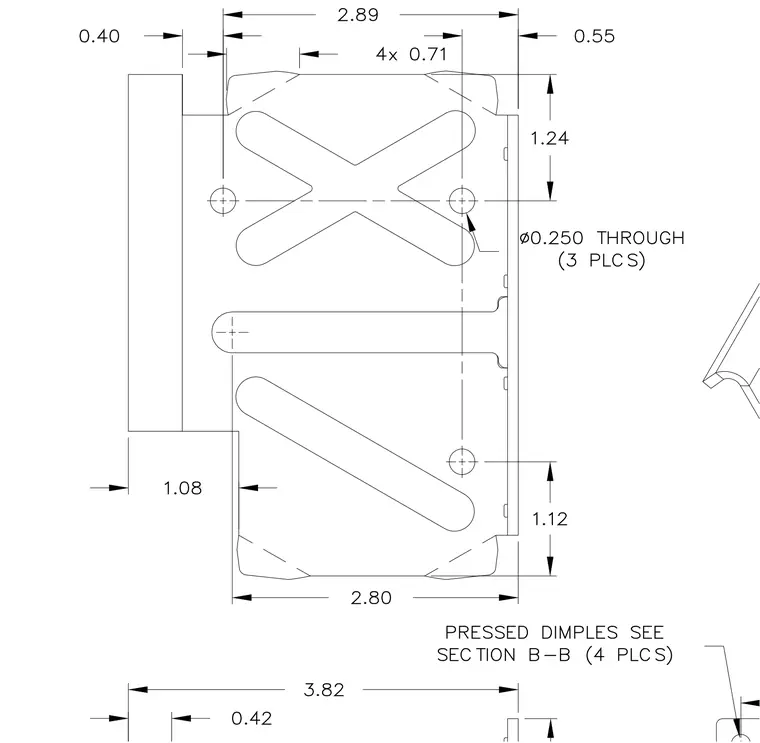

The stamped metal bracket features pressed dimples in four locations and three zero point two five zero inch diameter through-holes for fastening. Dimensions define the overall component geometry including a two point eight zero inch width and various edge clearances. Fabricated features include pressed dimples in four places as referenced in section B-B.
0.42 3.82 PRESSED DIMPLES SEE SECTION B-B (4 PLCS) 0.55 1.24 0.40 2.89 4x 0.71 1.12 1.08 2.80 ∅0.250 THROUGH (3 PLCS) L + + + J A [
