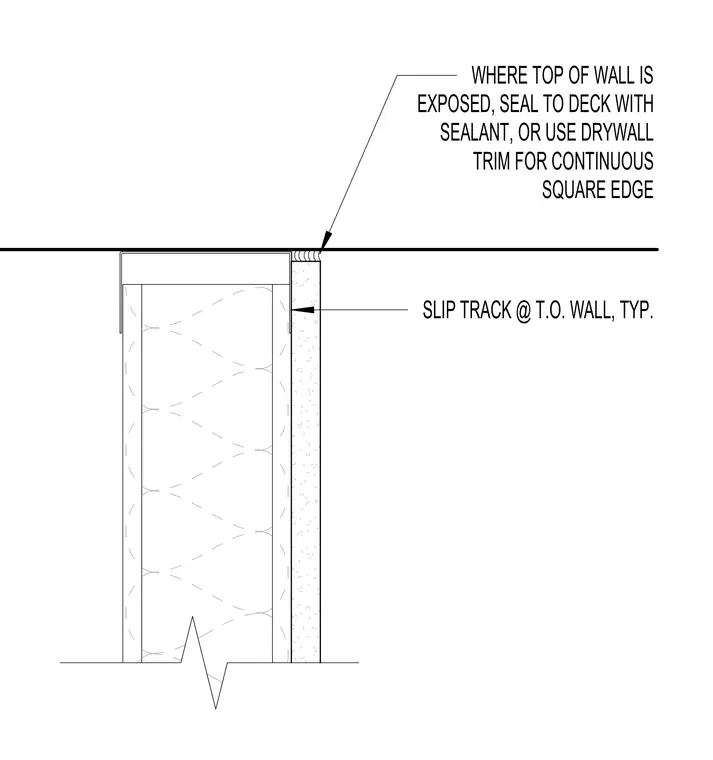

A metal stud partition wall terminates at the overhead deck using a typical slip track at the top of the wall. Where the top of the wall is exposed, the joint is sealed with sealant or finished with drywall trim to provide a continuous square edge.
WHERE TOP OF WALL IS EXPOSED, SEAL TO DECK WITH SEALANT, OR USE DRYWALL TRIM FOR CONTINUOUS SQUARE EDGE SLIP TRACK @ T.O. WALL, TYP.
